Schneider Electric NSYSFELB 4 Lifting Brackets
Schneider Electric
$46.94
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric NSYSFELB 4 Lifting Brackets

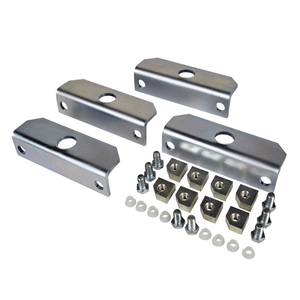

Set of 4 lifting brackets for Spacial SF/SFHD/SFM, Prisma PH. H is60 x W is100 x D is49 mm. Mounting on enclosure top. Support directly in the axis of the uprights. Permanent permissible load 500 kg. Fixing by screws type M12. Steel made, zinc coated surface finish.
- Environmental Disclosure:
- ENVPEP110923EN
- Mounting Support:
- directly in the axis of the uprights
- Height:
- 60 mm
- Range Compatibility:
- Spacial Spacial SF || Spacial Spacial SFHD || Prisma Prisma PH || Spacial Spacial SFM
- Surface Finish:
- zinc coated
- Rohs Exemption Information:
- Yes
- Device Composition:
- 4 bracket || fixing elements
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Product Or Component Type:
- lifting bracket
- Material:
- steel
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Mounting Location:
- enclosure top
- Reach Free Of Svhc:
- Yes
- Sustainable Offer Status:
- Green Premium product
- Mercury Free:
- Yes
- Device Application:
- multi-purpose
- Permanent Permissible Load:
- 500 kg
- Range:
- Spacial
- Width:
- 100 mm
- Warranty:
- 18 months
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Circularity Profile:
- N/A
- Quantity Per Set:
- set of 1
- Diameter:
- 32 mm
- Accessory / Separate Part Category:
- lifting accessory
- Toxic Heavy Metal Free:
- Yes
- Fixing Mode:
- by screws M12
- Depth:
- 49 mm
- Catalog:
- View
- Datasheet:
- View
