Schneider Electric NSYSFX201060 Sfx 304L 2000X1000X600

Schneider Electric NSYSFX201060 Sfx 304L 2000X1000X600

Schneider Electric
SKU:
NSYSFX201060
|
UPC:
3.61E+12
$11,236.82
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

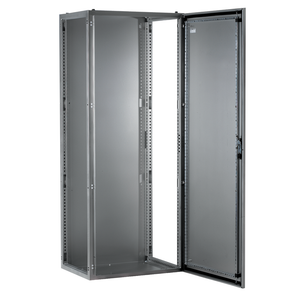

SFX 304L stainless suitable enclosure, H2000xW1000xD600mm, Scotch Brite® finish.
Additional Information
Device Application:
multi-purpose
Enclosure Nominal Depth:
600 mm
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Device Composition:
1 structure || 2 door with reinforcement frame || 1 locking system with handle door || 4 mounting plate bracket || 1 cable gland plate
Installation Accessory Type:
floor-standing
Net Weight:
105 kg
Lock Type:
3 points lock, handle with 5 mm double-bar insert
Environmental Characteristic:
corrosive || specific hygiene
Body Type:
single piece structure folded and welded || rear panel integrated
Product Or Component Type:
suitable enclosure
Sustainable Offer Status:
Green Premium product
Warranty:
18 months
Product Name:
Spacial SFX
Surface Finish:
enclosure Scotch-Brite® brushed || handle painted
Range:
Spacial
Ip Degree Of Protection:
IP55 IEC 60529
Mercury Free:
Yes
Mounting Plate Description:
without mounting plate
Ik Degree Of Protection:
IK10 IEC 62262
Number Of Doors:
front face 2
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Removable Parts:
door by hinges || mounting plate bracket by screws || cable gland plate by clips
Accessibility For Operation:
front || side
Door Type:
Solid
Material:
structure and door stainless steel 304L || handle zamak || hinge stainless steel
Circularity Profile:
N/A
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Environmental Disclosure:
ENVPEP2107011EN
Type Of Gland Plate:
plain
Enclosure Nominal Width:
1000 mm
Rohs Exemption Information:
Yes
Door Opening Side:
reversible 120 °)
Standards:
IEC 62208
Enclosure Nominal Height:
2000 mm
Brochure:
View
Datasheet:
View
