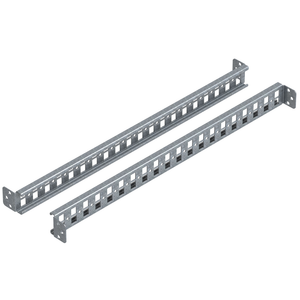

Schneider Electric NSYSICR6580 2 Integrated Rails H65 W800Mm

SKU:

NSYSICR6580

UPC:

3.60648E+12

MPN:

Condition:

New

Width:

nominal 800 mm || useful 709 mm

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Toxic Heavy Metal Free:

Yes

Device Composition:

fixing elements || 2 cross rails

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Depth:

12 mm

Number Of Horizontal Rows:

1

Height:

65 mm

Rohs Exemption Information:

Yes

Product Specific Application:

30 mm additional space on each fixation side (a total of 60 mm)

Maximum Load:

70 kg

Material:

galvanised steel

Range Compatibility:

Spacial Spacial SF suitable enclosure || Spacial Spacial SM compact enclosure

Device Application:

multi-purpose

Accessory / Separate Part Category:

mounting accessory

Product Or Component Type:

cross rail

Thickness:

1.5 mm

Mercury Free:

Yes

Adjustment:

adjustable with a pitch of 25 mm

Fixing Mode:

by screws

Quantity Per Set:

set of 1

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Mounting Location:

on structure of enclosure

Range:

Spacial

Mounting Support:

upright

Reach Free Of Svhc:

Yes
