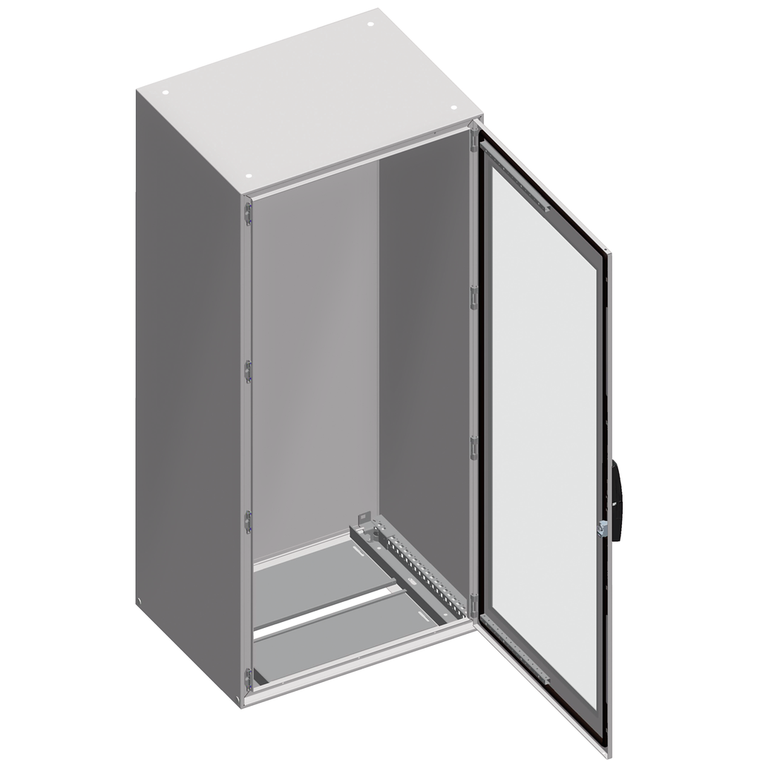

Schneider Electric NSYSM18850T Sm Glazed Door Wo/Mp 1800X800X500

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYSM18850T Sm Glazed Door Wo/Mp 1800X800X500

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYSM18850T

UPC:

3.60649E+12

MPN:

Condition:

New

Color:

enclosure Gray RAL 7035) || handle Black RAL 9005)

Sustainable Offer Status:

Green Premium product

Product Name:

Spacial SM

Door Type:

Glass

Body Type:

front part forming a rigid frame with welded corners || single piece body with welded rear panel

Enclosure Nominal Height:

1800 mm

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Rohs Exemption Information:

Yes

Ip Degree Of Protection:

IP55 IEC 60529

Device Composition:

1 body || 1 cable gland plate || 1 locking system with handle door || 4 mounting plate bracket || 1 door

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Device Application:

multi-purpose

Environmental Disclosure:

ENVPEP110923EN

Installation Accessory Type:

floor-standing

Product Certifications:

UL || BV || DNV

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Lock Type:

4 points lock, handle with 5 mm double bar insert

Circularity Profile:

N/A

Number Of Doors:

front 1

Door Opening Side:

reversible 120 °)

Mercury Free:

Yes

Mounting Plate Description:

without mounting plate

Surface Finish:

epoxy-polyester powder

Accessibility For Operation:

front

Type Of Gland Plate:

standard

Warranty:

18 months

Standards:

IEC 62208

Net Weight:

96 kg

Product Or Component Type:

compact enclosure

Removable Parts:

door by screws hinge || mounting plate bracket by screws

Enclosure Nominal Width:

800 mm

Enclosure Nominal Depth:

500 mm

Cable Entry:

1 entry

Material:

door Securit glass || body sheet steel || door sheet steel || hinge zamak

Range:

Spacial

Ik Degree Of Protection:

IK08 IEC 62262

Datasheet:

View
