Schneider Electric NSYSMHR16 2 Horiz Adapt Profiles 1600

Schneider Electric NSYSMHR16 2 Horiz Adapt Profiles 1600

Schneider Electric
SKU:
NSYSMHR16
|
UPC:
3606480146718
Availability:
Contact us to confirm availability and lead times.
$133.75
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

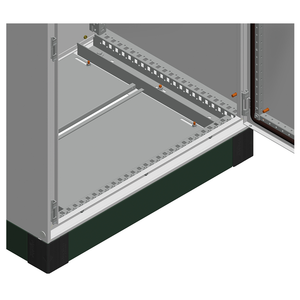

Spacial SM horizontal adaptation profiles. 1600 mm. Allows to have fixation points in the external frame of the monobloc enclosure. Mounting on top and bottom front of enclosure. Horizontal installation. Steel made, zinc coated surface finish. 2 profiles and fixing screws included.
Additional Information
Reach Free Of Svhc:
Yes
Installation Direction:
horizontal
Thickness:
1.5 mm
Mercury Free:
Yes
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Toxic Heavy Metal Free:
Yes
Mounting Location:
top and bottom front of enclosure
Depth:
42 mm
Product Or Component Type:
adaptation profile
Surface Finish:
zinc coated
Sustainable Offer Status:
Green Premium product
Circularity Profile:
N/A
Width:
real 1380 mm || nominal 1600 mm
Environmental Disclosure:
ENVPEP110923EN
Range Compatibility:
Spacial Spacial SM
Warranty:
18 months
Range:
Spacial
Material:
steel
Quantity Per Set:
set of 1
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
Rohs Exemption Information:
Yes
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Device Application:
multi-purpose
Accessory / Separate Part Category:
mounting accessory
Device Composition:
fixing screws || 2 profile
Fixing Mode:
by screws - on front fixing point
Height:
24.5 mm
