Schneider Electric NSYSMX181240 Smx 304L 1800X1200X400
Schneider Electric
$6,119.84
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric NSYSMX181240 Smx 304L 1800X1200X400

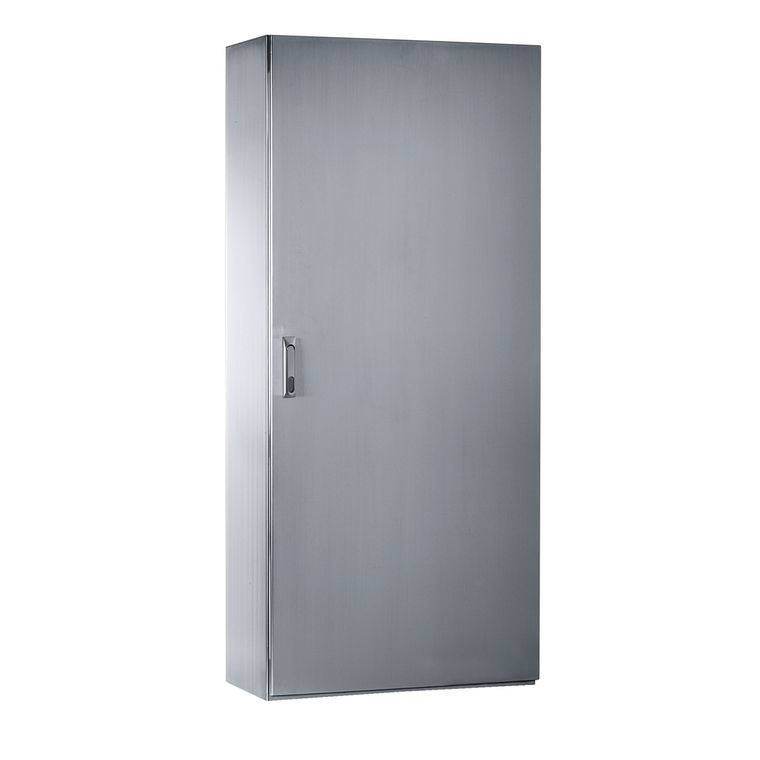

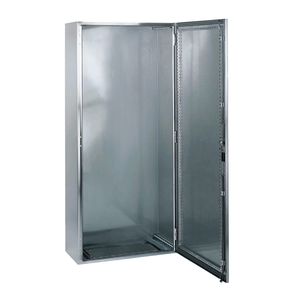

Spacial SMX monobloc compact steel enclosure with plain front door. 1800 x 1200 x 400 mm. Front part forming a rigid frame with welded corners. Single piece body with welded rear panel. Without mounting plate. 3 points door locking system with handle DB 5mm. Body and door stainless steel 304L. Protection IP 55, IK10. Enclosure Scotch-Brite® brushed finish.
- Rohs Exemption Information:
- Yes
- Enclosure Nominal Depth:
- 400 mm
- Product Name:
- Spacial SMX
- Lock Type:
- 3 points lock, handle with 5 mm double-bar insert
- Ip Degree Of Protection:
- IP55 IEC 60529
- Ik Degree Of Protection:
- IK10 IEC 62262
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Enclosure Nominal Width:
- 1200 mm
- Door Opening Side:
- reversible 120 °)
- Type Of Gland Plate:
- plain
- Mounting Plate Description:
- without mounting plate
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Device Composition:
- 1 body || 2 door || 1 cable gland plate || 1 locking system with handle door || 4 mounting plate bracket
- Mercury Free:
- Yes
- Warranty:
- 18 months
- Material:
- body and door stainless steel 304L || handle zamak || hinge stainless steel
- Environmental Characteristic:
- corrosive || specific hygiene
- Standards:
- IEC 62208
- Number Of Doors:
- front face 2
- Accessibility For Operation:
- front
- Product Or Component Type:
- compact enclosure
- Product Certifications:
- CAN/CSA 22 || UL 508
- Net Weight:
- 132 kg
- Surface Finish:
- enclosure Scotch-Brite® brushed || handle painted
- Range:
- Spacial
- Body Type:
- single piece body folded and welded
- Circularity Profile:
- N/A
- Removable Parts:
- door by hinges || mounting plate bracket by screws || cable gland plate by clips
- Environmental Disclosure:
- ENVPEP2107011EN
- Installation Accessory Type:
- floor-standing
- Sustainable Offer Status:
- Green Premium product
- Device Application:
- multi-purpose
- Enclosure Nominal Height:
- 1800 mm
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Door Type:
- Solid
