Schneider Electric NSYSMX201040H Smx 316L 2000X1000X400
Schneider Electric
$11,264.16
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric NSYSMX201040H Smx 316L 2000X1000X400

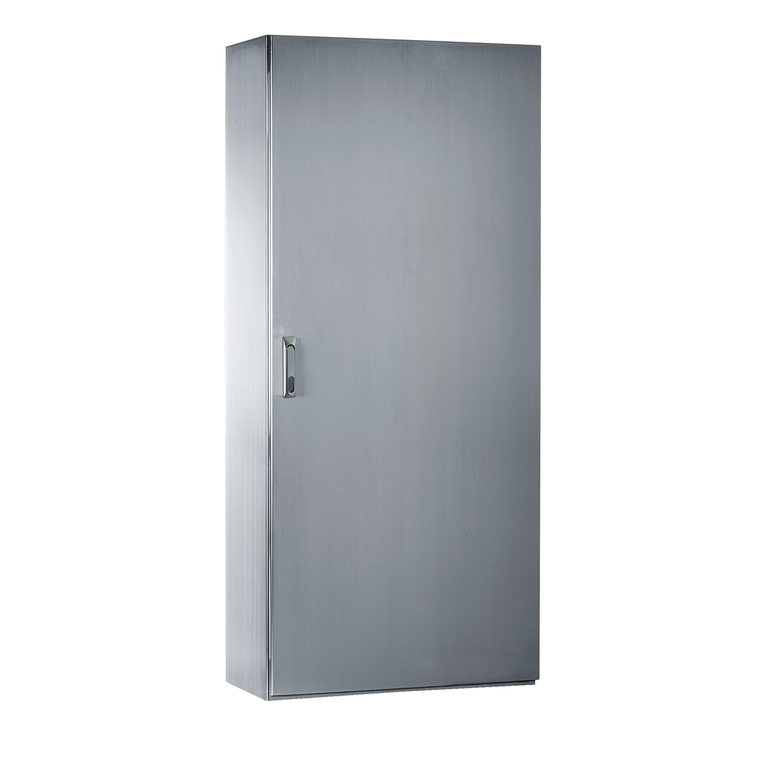

SMX 316L stainless monobloc enclosure, H2000xW1000xD400mm, Scotch Brite® finish.
- Enclosure Nominal Height:
- 2000 mm
- Removable Parts:
- door by hinges || mounting plate bracket by screws || cable gland plate by clips
- Number Of Doors:
- front face 2
- Door Type:
- Solid
- Net Weight:
- 126 kg
- Door Opening Side:
- reversible 120 °)
- Device Composition:
- 1 body || 2 door || 1 cable gland plate || 1 locking system with handle door || 4 mounting plate bracket
- Body Type:
- single piece body folded and welded
- Enclosure Nominal Depth:
- 400 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Product Name:
- Spacial SMX
- Range:
- Spacial
- Enclosure Nominal Width:
- 1000 mm
- Ik Degree Of Protection:
- IK10 IEC 62262
- Product Or Component Type:
- compact enclosure
- Warranty:
- 18 months
- Material:
- handle zamak || hinge stainless steel || body and door stainless steel 316L
- Surface Finish:
- enclosure Scotch-Brite® brushed || handle painted
- Product Certifications:
- CAN/CSA 22 || UL 508
- Ip Degree Of Protection:
- IP55 IEC 60529
- Environmental Characteristic:
- corrosive || specific hygiene
- Standards:
- IEC 62208
- Type Of Gland Plate:
- plain
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile:
- N/A
- Accessibility For Operation:
- front
- Sustainable Offer Status:
- Green Premium product
- Installation Accessory Type:
- floor-standing
- Environmental Disclosure:
- ENVPEP2107011EN
- Lock Type:
- 3 points lock, handle with 5 mm double-bar insert
- Mounting Plate Description:
- without mounting plate
- Device Application:
- multi-purpose
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Mercury Free:
- Yes
- Rohs Exemption Information:
- Yes
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
