Schneider Electric NSYSPF10200 Front Plinth 200X1000
Schneider Electric
$273.72
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

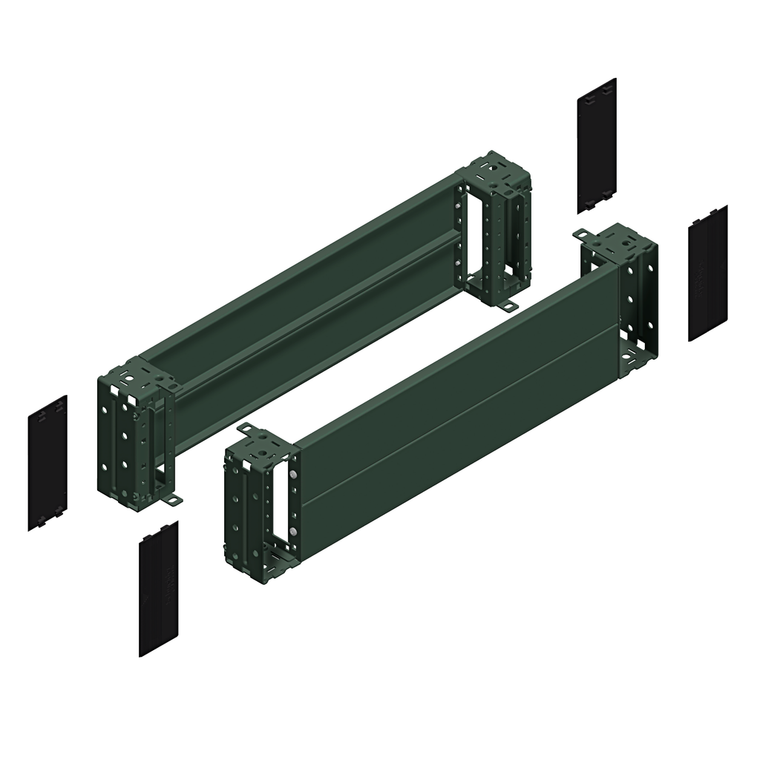

Schneider Electric NSYSPF10200 Front Plinth 200X1000
Front plinth for Spacial CRN, S3D, SF, SM, SD. 200 x 1000 mm. Multi-purpose enclosure accessory. Plinth side panels mounting support. Permanent permissible load 1300kg. Fixing mode by fixing element. Epoxy-polyester powder surface finish. Grey RAL 7022. IP30 complete plinth, IK10 .
- Surface Finish:
- epoxy-polyester powder
- Device Application:
- multi-purpose
- Accessory / Separate Part Category:
- enclosure accessory
- Environmental Disclosure:
- ENVPEP110923EN
- Rohs Exemption Information:
- Yes
- Sustainable Offer Status:
- Green Premium product
- Height:
- 200 mm
- Range:
- Spacial
- Ip Degree Of Protection:
- IP30 complete plinth)
- Mercury Free:
- Yes
- Device Composition:
- fixing elements || 4 corner cover || 4 corner || 2 front panel || 2 rear panel
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Range Compatibility:
- Spacial Spacial SF || Spacial Spacial SM || Spacial Spacial SD || Spacial Spacial S3D || Spacial Spacial CRN
- Mounting Support:
- plinth side panels
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Permanent Permissible Load:
- 1300 kg
- Warranty:
- 18 months
- Color:
- Gray RAL 7022)
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Fixing Mode:
- by fixing element - on structure
- Product Or Component Type:
- plinth front
- Ik Degree Of Protection:
- IK10
- Circularity Profile:
- N/A
- Width:
- nominal 1000 mm
- Datasheet:
- View
