Schneider Electric NSYSQCR6560 2 Simple Rails 2 Rows 600
Schneider Electric
$35.06
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

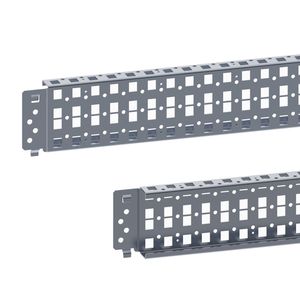

Spacial SF/SM quick fixing cross rails. 64 mm (2 rows) x 600 mm. Simple perforated 25 mm pitch. Does not require fixing support disposes of a wing on each end. In zinc-plated steel and with 1,5 mm thickness. Set of 2.
- Width:
- 65 mm
- Material:
- steel
- Warranty:
- 18 months
- Mounting Location:
- on structure of enclosure || between cross rails
- Height:
- nominal 600 mm || useful 510 mm
- Mounting Support:
- adaptation profile, on SM enclosures
- Quantity Per Set:
- set of 1
- Number Of Horizontal Rows:
- 2
- Toxic Heavy Metal Free:
- Yes
- Mercury Free:
- Yes
- Sustainable Offer Status:
- Green Premium product
- Rohs Exemption Information:
- Yes
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Environmental Disclosure:
- ENVPEP110923EN
- Depth:
- 27 mm
- Fixing Mode:
- by screws || clipped - on structure
- Circularity Profile:
- N/A
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Range Compatibility:
- Spacial Spacial SF || Spacial Spacial SM || Spacial Spacial SFX || Spacial Spacial SMX
- Maximum Load:
- 80 kg
- Device Composition:
- fixing elements || 2 cross rails
- Device Application:
- multi-purpose
- Adjustment:
- adjustable with a pitch of 25 mm
- Reach Free Of Svhc:
- Yes
- Accessory / Separate Part Category:
- mounting accessory
- Thickness:
- 1.5 mm
- Range:
- Spacial
- Product Or Component Type:
- quick cross rails
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Surface Finish:
- galvanized
- Catalog:
- View
- Datasheet:
- View
