Schneider Electric

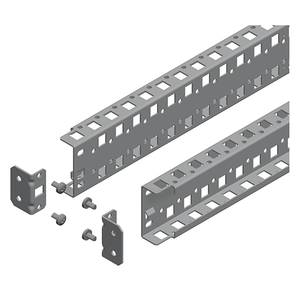

Schneider Electric NSYSUCR40200 2 Universal Rails 1 Row 2000

SKU:

NSYSUCR40200

UPC:

3.60649E+12

MPN:

Condition:

New

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Environmental Disclosure:

ENVPEP110923EN

Sustainable Offer Status:

Green Premium product

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Installation Direction:

vertical

Device Composition:

fixing elements || 2 cross rails || 4 supports

Reach Free Of Svhc:

Yes

Height:

nominal 2000 mm || useful 1907 mm

Adjustment:

adjustable with a pitch of 25 mm

Product Or Component Type:

universal cross rail

Range Compatibility:

Linergy Linergy LGY || Linergy Linergy LGYE || Linergy Linergy BS || Spacial Spacial SF || Spacial Spacial SM || Spacial Spacial SFX || Spacial Spacial SMX

Mercury Free:

Yes

Enclosure Nominal Dimensions:

H: 2000 mm

Warranty:

18 months

Material:

steel

Surface Finish:

galvanized

Fixing Mode:

by screws

Device Application:

multi-purpose

Circularity Profile:

N/A

Toxic Heavy Metal Free:

Yes

Mounting Location:

between cross rails || on structure of enclosure

Number Of Horizontal Rows:

1

Width:

40 mm

Quantity Per Set:

set of 1

Rohs Exemption Information:

Yes

Depth:

27 mm

Range:

Spacial

Thickness:

1.5 mm

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Mounting Support:

adaptation profile, on SM enclosures

Accessory / Separate Part Category:

mounting accessory
