Schneider Electric

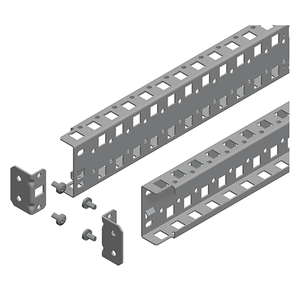

Schneider Electric NSYSUCR9060 2 Universal Rails 3 Rows 600

SKU:

NSYSUCR9060

UPC:

3606485133676

MPN:

Condition:

New

Sustainable Offer Status:

Green Premium product

Device Application:

multi-purpose

Range:

Spacial

Material:

steel

Height:

nominal 600 mm || useful 507 mm

Reach Regulation:

Free of Substances of Very High Concern above the threshold

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Thickness:

1.5 mm

Mercury Free:

Yes

Toxic Heavy Metal Free:

Yes

Circularity Profile:

N/A

Fixing Mode:

by screws

Maximum Load:

110 kg

Surface Finish:

galvanized

Number Of Horizontal Rows:

3

Quantity Per Set:

set of 1

Enclosure Nominal Dimensions:

H: 600 mm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Reach Free Of Svhc:

Yes

Accessory / Separate Part Category:

mounting accessory

Mounting Location:

between cross rails || on structure of enclosure

Warranty:

18 months

Depth:

27 mm

Range Compatibility:

Spacial Spacial SF || Spacial Spacial SF 5G || Spacial Spacial SM || Spacial Spacial SFX || Spacial Spacial SMX

Device Composition:

fixing elements || 2 cross rails || 4 supports

Product Or Component Type:

universal cross rail

Width:

90 mm

Environmental Disclosure:

ENVPEP110923EN

Adjustment:

adjustable with a pitch of 25 mm

Rohs Exemption Information:

Yes

Mounting Support:

adaptation profile, on SM enclosures

Datasheet:

View
