Schneider Electric NSYSVR808 Ventilated Roof 800X800
Schneider Electric
$116.29
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric NSYSVR808 Ventilated Roof 800X800
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

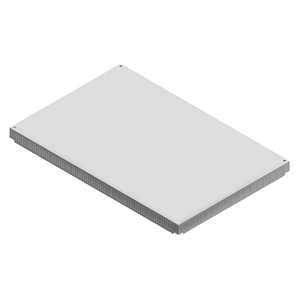

Spacial SF ventilated roof. 799 x 800 mm. Provides the enclosure with natural ventilation. Roof fixing point location with screw type M12. Plastic and Steel. IP 30, Grey RAL 7035. Roof with 4 top elevation brackets.
- Environmental Disclosure:
- ENVPEP110923EN
- Circularity Profile:
- N/A
- Quantity Per Set:
- set of 1
- Range:
- Spacial
- Mercury Free:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Height:
- 72 mm
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Warranty:
- 18 months
- Device Application:
- electronic application || multi-purpose
- Mounting Location:
- on top of enclosure
- Device Composition:
- 4 elevator || 1 roof
- Color:
- Gray RAL 7035) || Gray
- Material:
- steel || plastic
- Fixing Mode:
- by elevatorsM12 - roof fixing point
- Rohs Exemption Information:
- Yes
- Width:
- real 770 mm || nominal 800 mm
- Accessory / Separate Part Category:
- enclosure accessory
- Surface Finish:
- epoxy-polyester powder
- Depth:
- real 770 mm || nominal 800 mm
- Ip Degree Of Protection:
- IP30 IEC 60529
- Product Or Component Type:
- ventilated roof
- Range Compatibility:
- Spacial Spacial SF suitable enclosure
- Sustainable Offer Status:
- Green Premium product
- Catalog:
- View
- Datasheet:
- View
