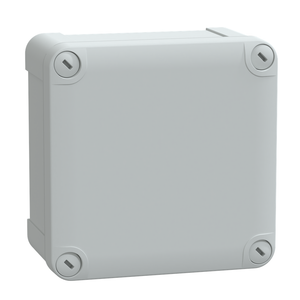

Schneider Electric NSYTBP1176 Pc Ind Box 107X65X47 Lo Pack of 5

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYTBP1176 Pc Ind Box 107X65X47 Lo Pack of 5

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYTBP1176

UPC:

3.60648E+12

MPN:

Condition:

New

Ambient Air Temperature For Storage:

-15-60 °C

Mounting Location:

outdoor (with canopy or shelter and anticondensation valve)

Type Of Front Cover:

low plain cover

Standards:

UL 508 A || IEC 62208

Circularity Profile:

ENVEOLI2012016EN

Fire Resistance:

960 °C

Range:

Thalassa

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Material:

polycarbonate

Sustainable Offer Status:

Green Premium product

Reach Free Of Svhc:

Yes

Ip Degree Of Protection:

IP66 conforming to NEMA 4.4X

Device Application:

multi-purpose

Environmental Disclosure:

ENVPEP2012016EN

Body Type:

one piece moulded

Lock Type:

captive screw flat outside sealed area

Warranty:

18 months

Enclosure Mounting:

wall mounted

Mercury Free:

Yes

Removable Parts:

cover by captive screws

Ambient Air Temperature For Operation:

-25-80 °C

Toxic Heavy Metal Free:

Yes

Rohs Exemption Information:

Yes

Device Composition:

1 body || 1 cover || 4 cover screw

Internal Width:

65 mm

Depth:

62 mm

Ik Degree Of Protection:

IK08 IEC 62262

Quantity Per Set:

set of 5

Width:

74 mm

Internal Depth:

55 mm

Electrical Insulation Class:

class II

Internal Height:

105 mm

Product Certifications:

TÜV || UL

Color:

Gray RAL 7035)

Net Weight:

0.124 kg

Product Name:

Thalassa TBP

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Height:

116 mm

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Product Or Component Type:

industrial box

Cover Fixing:

metal screws
