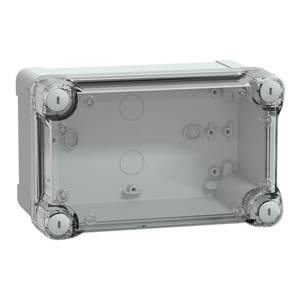

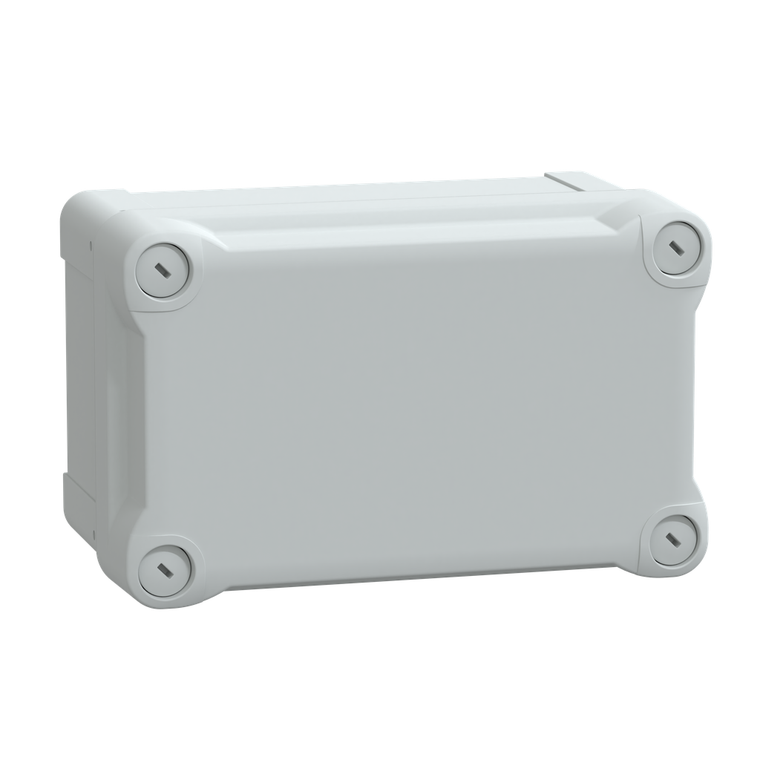

Schneider Electric NSYTBP191210H Pc Ind Box 192X121X105 Hi Pack of 2

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYTBP191210H Pc Ind Box 192X121X105 Hi Pack of 2

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYTBP191210H

UPC:

3606480165658

MPN:

Condition:

New

Depth:

105 mm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Warranty:

18 months

Body Type:

one piece moulded

Electrical Insulation Class:

class II

Internal Depth:

100 mm

Reach Free Of Svhc:

Yes

Device Application:

multi-purpose

Product Name:

Thalassa TBP

Removable Parts:

cover by captive screws

Sustainable Offer Status:

Green Premium product

Rohs Exemption Information:

Yes

Width:

121 mm

Material:

polycarbonate

Cover Fixing:

plastic screws

Net Weight:

0.43 kg

Internal Height:

175 mm

Environmental Disclosure:

ENVPEP2012016EN

Type Of Front Cover:

high plain cover

Ambient Air Temperature For Operation:

-25-80 °C

Product Certifications:

TÜV || UL

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Mercury Free:

Yes

Internal Width:

105 mm

Standards:

IEC 62208 || UL 508 A

Enclosure Mounting:

wall mounted

Fire Resistance:

960 °C

Ambient Air Temperature For Storage:

-15-60 °C

Height:

192 mm

Device Composition:

1 body || 1 cover || 4 cover screw

Ik Degree Of Protection:

IK08 IEC 62262

Lock Type:

captive screw flat outside sealed area

Circularity Profile:

ENVEOLI2012016EN

Color:

Gray RAL 7035)

Quantity Per Set:

set of 2

Ip Degree Of Protection:

IP66 conforming to NEMA 4.4X

Toxic Heavy Metal Free:

Yes

Product Or Component Type:

industrial box

Range:

Thalassa

Mounting Location:

outdoor (with canopy or shelter and anticondensation valve)

Datasheet:

View
