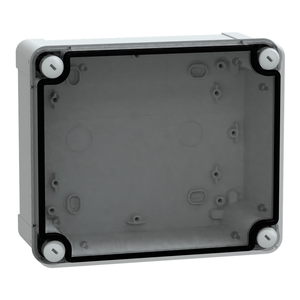

Schneider Electric NSYTBP19168 Pc Ind Box 192X164X87 Lo

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYTBP19168 Pc Ind Box 192X164X87 Lo

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYTBP19168

UPC:

3606480165665

MPN:

Condition:

New

Enclosure Mounting:

wall mounted

Warranty:

18 months

Lock Type:

captive screw flat outside sealed area

Product Or Component Type:

industrial box

Product Certifications:

TÜV || UL

Fire Resistance:

960 °C

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Ambient Air Temperature For Storage:

-15-60 °C

Electrical Insulation Class:

class II

Range:

Thalassa

Toxic Heavy Metal Free:

Yes

Standards:

IEC 62208 || UL 508 A

Environmental Disclosure:

ENVPEP2012016EN

Ip Degree Of Protection:

IP66 conforming to NEMA 4.4X

Product Name:

Thalassa TBP

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Cover Fixing:

plastic screws

Color:

Gray RAL 7035)

Removable Parts:

cover by captive screws

Ambient Air Temperature For Operation:

-25-80 °C

Depth:

87 mm

Material:

polycarbonate

Type Of Front Cover:

low plain cover

Internal Width:

150 mm

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Body Type:

one piece moulded

Mounting Location:

outdoor (with canopy or shelter and anticondensation valve)

Mercury Free:

Yes

Device Composition:

1 body || 1 cover || 4 cover screw

Circularity Profile:

ENVEOLI2012016EN

Device Application:

multi-purpose

Width:

164 mm

Reach Free Of Svhc:

Yes

Internal Height:

175 mm

Rohs Exemption Information:

Yes

Height:

192 mm

Sustainable Offer Status:

Green Premium product

Ik Degree Of Protection:

IK08 IEC 62262

Net Weight:

0.45 kg

Internal Depth:

80 mm

Catalog:

View

Datasheet:

View
