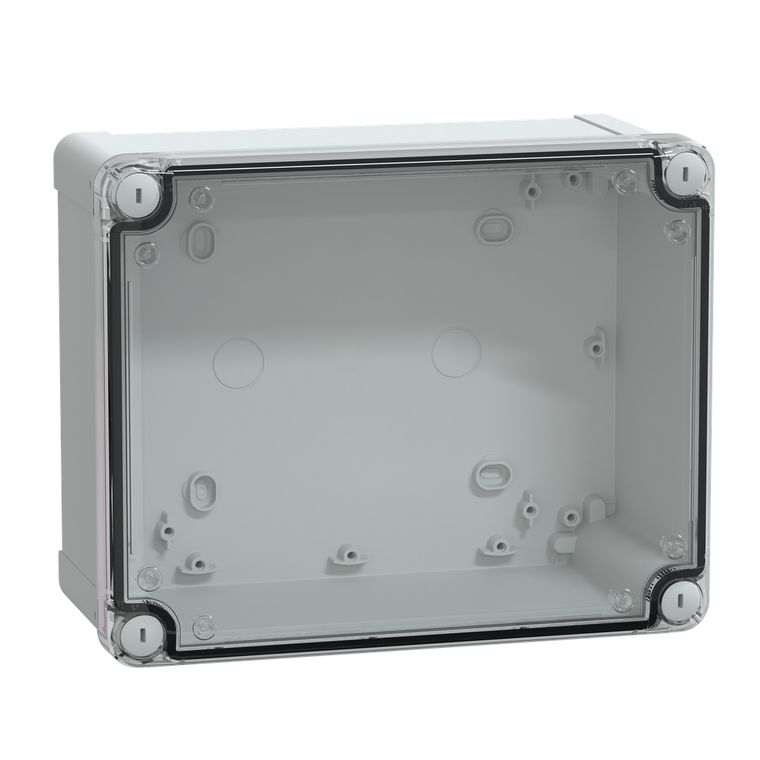

Schneider Electric NSYTBP241910HT Pc Ind Box 241X192X105 Hi Tr

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYTBP241910HT Pc Ind Box 241X192X105 Hi Tr

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYTBP241910HT

UPC:

3606480165863

MPN:

Condition:

New

Height:

241 mm

Ambient Air Temperature For Operation:

-25-80 °C

Product Certifications:

TÜV || UL

Device Application:

multi-purpose

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Product Name:

Thalassa TBP

Net Weight:

0.8 kg

Internal Depth:

100 mm

Body Type:

one piece moulded

Warranty:

18 months

Width:

194 mm

Lock Type:

captive screw flat outside sealed area

Product Or Component Type:

industrial box

Removable Parts:

cover by captive screws

Electrical Insulation Class:

class II

Standards:

IEC 62208 || UL 508 A

Environmental Disclosure:

ENVPEP2012016EN

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Depth:

107 mm

Range:

Thalassa

Mounting Location:

outdoor (with canopy or shelter and anticondensation valve)

Cover Fixing:

plastic screws

Circularity Profile:

ENVEOLI2012016EN

Enclosure Mounting:

wall mounted

Device Composition:

1 body || 1 cover || 4 cover screw

Mercury Free:

Yes

Ambient Air Temperature For Storage:

-15-60 °C

Type Of Front Cover:

high transparent cover

Internal Width:

175 mm

Rohs Exemption Information:

Yes

Material:

polycarbonate

Ip Degree Of Protection:

IP66 conforming to NEMA 4.4X

Fire Resistance:

960 °C

Internal Height:

225 mm

Color:

Gray RAL 7035) || Transparent

Reach Free Of Svhc:

Yes

Toxic Heavy Metal Free:

Yes

Ik Degree Of Protection:

IK08 IEC 62262

Sustainable Offer Status:

Green Premium product

Datasheet:

View
