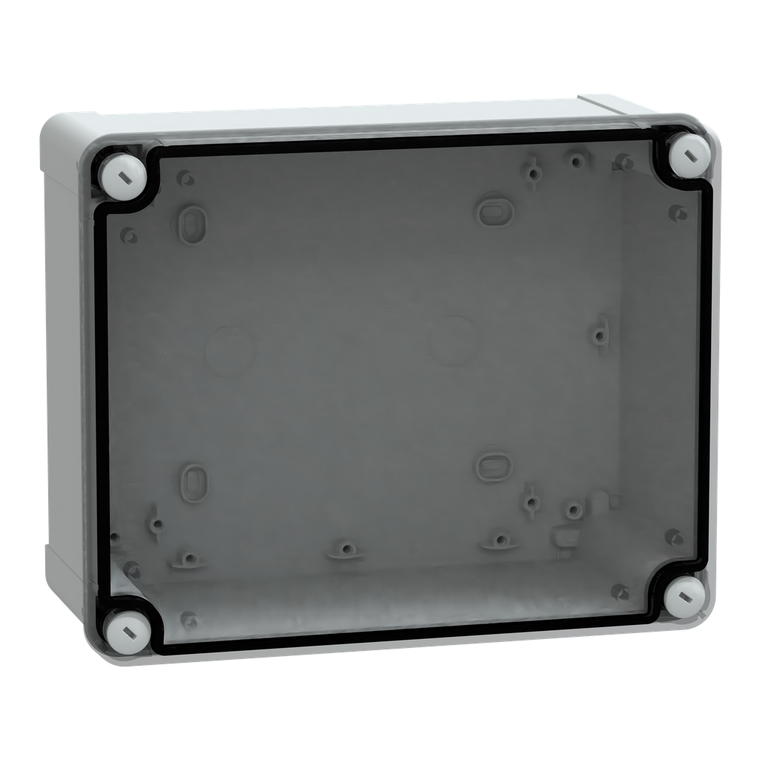

Schneider Electric NSYTBP241910T Pc Ind Box 241X192X105 Lo Tr

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYTBP241910T Pc Ind Box 241X192X105 Lo Tr

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYTBP241910T

UPC:

3.60648E+12

MPN:

Condition:

New

Product Name:

Thalassa TBP

Type Of Front Cover:

low transparent cover

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Standards:

UL 508 A || IEC 62208

Ambient Air Temperature For Storage:

-15-60 °C

Electrical Insulation Class:

class II

Internal Height:

225 mm

Mercury Free:

Yes

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Ik Degree Of Protection:

IK08 IEC 62262

Product Or Component Type:

industrial box

Fire Resistance:

960 °C

Reach Free Of Svhc:

Yes

Removable Parts:

cover by captive screws

Height:

241 mm

Net Weight:

0.72 kg

Lock Type:

captive screw flat outside sealed area

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Enclosure Mounting:

wall mounted

Depth:

107 mm

Body Type:

one piece moulded

Rohs Exemption Information:

Yes

Sustainable Offer Status:

Green Premium product

Internal Width:

175 mm

Device Composition:

1 body || 1 cover || 4 cover screw

Mounting Location:

outdoor (with canopy or shelter and anticondensation valve)

Warranty:

18 months

Cover Fixing:

plastic screws

Environmental Disclosure:

ENVPEP2012016EN

Ambient Air Temperature For Operation:

-25-80 °C

Circularity Profile:

ENVEOLI2012016EN

Range:

Thalassa

Color:

Gray RAL 7035) || Transparent

Material:

polycarbonate

Product Certifications:

TÜV || UL

Device Application:

multi-purpose

Internal Depth:

100 mm

Ip Degree Of Protection:

IP66 conforming to NEMA 4.4X

Toxic Heavy Metal Free:

Yes

Width:

194 mm

Catalog:

View

Datasheet:

View
