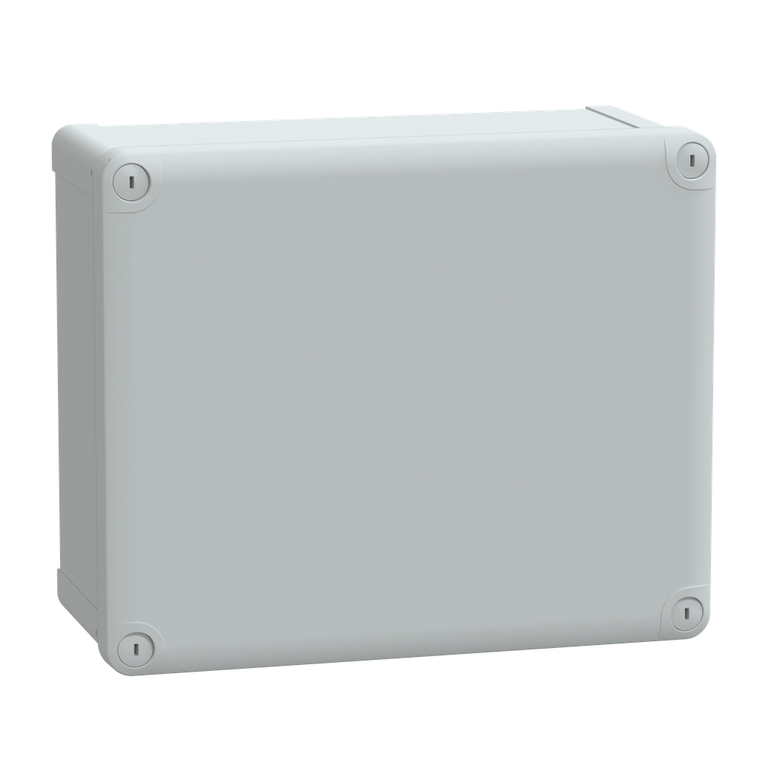

Schneider Electric NSYTBP292412H Pc Ind Box 291X241X128 Hi

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYTBP292412H Pc Ind Box 291X241X128 Hi

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYTBP292412H

UPC:

3606480165733

MPN:

Condition:

New

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Material:

polycarbonate

Color:

Gray RAL 7035)

Sustainable Offer Status:

Green Premium product

Ip Degree Of Protection:

IP66 conforming to NEMA 4.4X

Height:

291 mm

Ik Degree Of Protection:

IK08 IEC 62262

Depth:

128 mm

Product Certifications:

TÜV || UL

Removable Parts:

cover by captive screws

Cover Fixing:

plastic screws

Body Type:

one piece moulded

Lock Type:

captive screw flat outside sealed area

Rohs Exemption Information:

Yes

Electrical Insulation Class:

class II

Device Composition:

1 body || 1 cover || 4 cover screw

Ambient Air Temperature For Operation:

-25-80 °C

Net Weight:

1.1 kg

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Internal Width:

225 mm

Device Application:

multi-purpose

Enclosure Mounting:

wall mounted

Mounting Location:

outdoor (with canopy or shelter and anticondensation valve)

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Width:

241 mm

Reach Free Of Svhc:

Yes

Range:

Thalassa

Type Of Front Cover:

high plain cover

Toxic Heavy Metal Free:

Yes

Fire Resistance:

960 °C

Circularity Profile:

ENVEOLI2012016EN

Mercury Free:

Yes

Internal Depth:

120 mm

Ambient Air Temperature For Storage:

-15-60 °C

Product Or Component Type:

industrial box

Environmental Disclosure:

ENVPEP2012016EN

Standards:

UL 508 A || IEC 62208

Warranty:

18 months

Internal Height:

275 mm

Product Name:

Thalassa TBP

Datasheet:

View
