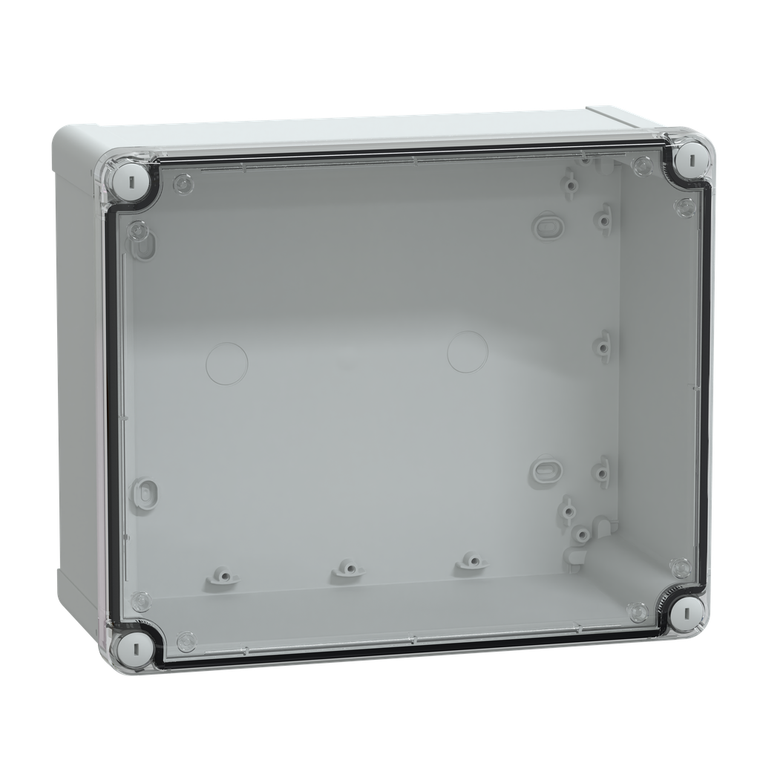

Schneider Electric NSYTBP292412HT Pc Ind Box 291X241X128 Hi Tr
Schneider Electric
$116.66
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric NSYTBP292412HT Pc Ind Box 291X241X128 Hi Tr
Thalassa TBP industrial PC box with transparent PC cover H60. Int is 275 x 225 x 120 mm. Ext is 291 x 241 x 128 mm. Wall mounted enclosure. High transparent cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV, UL. UL 508 A Standard. Fire resistance 960°. Polycarbonate made. IP66 (NEMA 4.4X), IK08, Grey RAL 7035, Insulation Class II. Set of 5. Ambient temperature for storage/operation is (-15 to 60 °C)/(-25 to 80 °C).
- Internal Width:
- 225 mm
- Height:
- 291 mm
- Device Composition:
- 1 body || 1 cover || 4 cover screw
- Toxic Heavy Metal Free:
- Yes
- Ip Degree Of Protection:
- IP66 conforming to NEMA 4.4X
- Net Weight:
- 1.2 kg
- Mounting Location:
- outdoor (with canopy or shelter and anticondensation valve)
- Removable Parts:
- cover by captive screws
- Rohs Exemption Information:
- Yes
- Product Certifications:
- TÃV || UL
- Lock Type:
- captive screw flat outside sealed area
- Body Type:
- one piece moulded
- Ambient Air Temperature For Storage:
- -15-60 °C
- Type Of Front Cover:
- high transparent cover
- Circularity Profile:
- ENVEOLI2012016EN
- Product Or Component Type:
- industrial box
- Color:
- Gray RAL 7035) || Transparent
- Environmental Disclosure:
- ENVPEP2012016EN
- Warranty:
- 18 months
- Material:
- polycarbonate
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Ik Degree Of Protection:
- IK08 IEC 62262
- Range:
- Thalassa
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Device Application:
- multi-purpose
- Sustainable Offer Status:
- Green Premium product
- Cover Fixing:
- plastic screws
- Fire Resistance:
- 960 °C
- Ambient Air Temperature For Operation:
- -25-80 °C
- Electrical Insulation Class:
- class II
- Reach Free Of Svhc:
- Yes
- Enclosure Mounting:
- wall mounted
- Depth:
- 128 mm
- Mercury Free:
- Yes
- Internal Height:
- 275 mm
- Width:
- 241 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Standards:
- IEC 62208 || UL 508 A
- Internal Depth:
- 120 mm
- Product Name:
- Thalassa TBP
