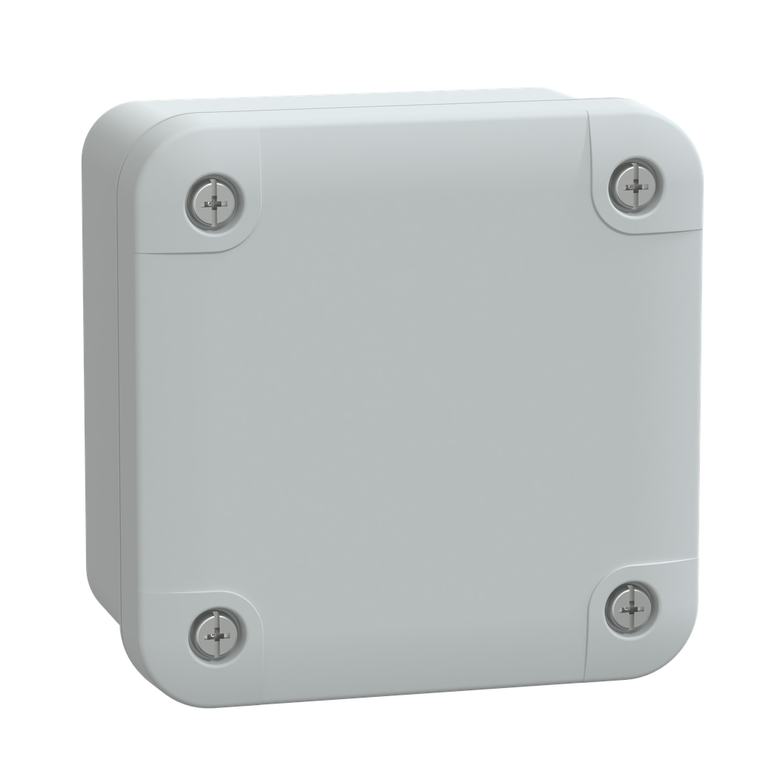

Schneider Electric NSYTBP885 Pc Ind Box 89X89X54 Lo Pack of 5

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYTBP885 Pc Ind Box 89X89X54 Lo Pack of 5

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYTBP885

UPC:

3606480165597

MPN:

Condition:

New

Net Weight:

0.108 kg

Color:

Gray RAL 7035)

Reach Free Of Svhc:

Yes

Enclosure Mounting:

wall mounted

Height:

89 mm

Width:

89 mm

Removable Parts:

cover by captive screws

Mounting Location:

outdoor (with canopy or shelter and anticondensation valve)

Quantity Per Set:

set of 5

Internal Height:

80 mm

Rohs Exemption Information:

Yes

Device Composition:

1 body || 1 cover || 4 cover screw

Ik Degree Of Protection:

IK08 IEC 62262

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental Disclosure:

ENVPEP2012016EN

Ip Degree Of Protection:

IP66 conforming to NEMA 4.4X

Warranty:

18 months

Body Type:

one piece moulded

Lock Type:

captive screw flat outside sealed area

Sustainable Offer Status:

Green Premium product

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Internal Width:

80 mm

Product Or Component Type:

industrial box

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Product Certifications:

TÜV || UL

Standards:

UL 508 A || IEC 62208

Device Application:

multi-purpose

Product Name:

Thalassa TBP

Ambient Air Temperature For Operation:

-25-80 °C

Circularity Profile:

ENVEOLI2012016EN

Fire Resistance:

960 °C

Material:

polycarbonate

Toxic Heavy Metal Free:

Yes

Depth:

54 mm

Internal Depth:

47 mm

Range:

Thalassa

Mercury Free:

Yes

Ambient Air Temperature For Storage:

-15-60 °C

Type Of Front Cover:

low plain cover

Electrical Insulation Class:

class II

Cover Fixing:

metal screws
