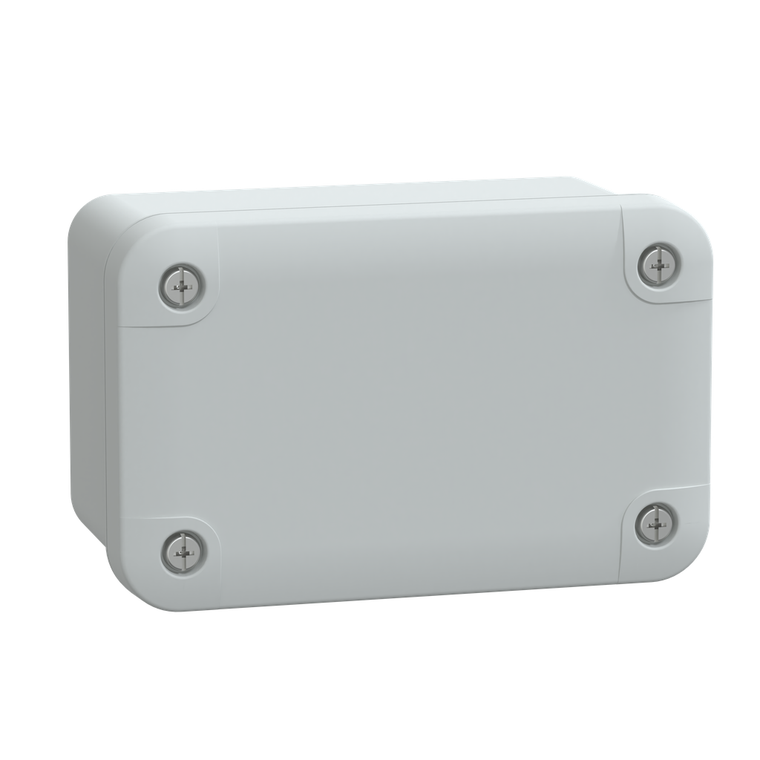

Schneider Electric NSYTBS1176 Abs Ind Box 107X65X55 Lo Pack of 5

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYTBS1176 Abs Ind Box 107X65X55 Lo Pack of 5

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYTBS1176

UPC:

3606480165221

MPN:

Condition:

New

Sustainable Offer Status:

Green Premium product

Internal Width:

65 mm

Reach Free Of Svhc:

Yes

Material:

ABS (acrylonitrile butadiene-styrene)

Device Application:

multi-purpose

Mercury Free:

Yes

Ambient Air Temperature For Operation:

-25-60 °C

Type Of Front Cover:

low plain cover

Depth:

62 mm

Ik Degree Of Protection:

IK07 IEC 62262

Toxic Heavy Metal Free:

Yes

Internal Height:

105 mm

Device Composition:

1 body || 1 cover || 4 cover screw

Circularity Profile:

N/A

Removable Parts:

cover by captive screws

Rohs Exemption Information:

Yes

Body Type:

one piece moulded

Lock Type:

captive screw flat outside sealed area

Environmental Disclosure:

ENVPEP2012015EN

Ip Degree Of Protection:

IP66 conforming to NEMA 4.4X

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Enclosure Mounting:

wall mounted

Height:

116 mm

Color:

Gray RAL 7035)

Warranty:

18 months

Width:

74 mm

Net Weight:

0.108 kg

Product Or Component Type:

industrial box

Quantity Per Set:

set of 5

Fire Resistance:

650 °C IEC 60695-2-11

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Standards:

IEC 62208

Cover Fixing:

metal screws

Electrical Insulation Class:

class II

Range:

Thalassa

Product Certifications:

TÜV

Ambient Air Temperature For Storage:

-15-40 °C

Product Name:

Thalassa TBS

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Internal Depth:

55 mm

Catalog:

View

Datasheet:

View
