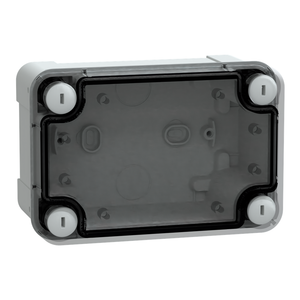

Schneider Electric NSYTBS1397 Abs Ind Box 138X93X72 Lo Pack of 2

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYTBS1397 Abs Ind Box 138X93X72 Lo Pack of 2

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYTBS1397

UPC:

3606480165269

MPN:

Condition:

New

Depth:

72 mm

Sustainable Offer Status:

Green Premium product

Internal Width:

80 mm

Rohs Exemption Information:

Yes

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Color:

Gray RAL 7035)

Type Of Front Cover:

low plain cover

Enclosure Mounting:

wall mounted

Environmental Disclosure:

ENVPEP2012015EN

Toxic Heavy Metal Free:

Yes

Warranty:

18 months

Internal Depth:

65 mm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Device Composition:

1 body || 1 cover || 4 cover screw

Height:

138 mm

Product Or Component Type:

industrial box

Fire Resistance:

650 °C IEC 60695-2-11

Electrical Insulation Class:

class II

Range:

Thalassa

Removable Parts:

cover by captive screws

Cover Fixing:

plastic screws

Ambient Air Temperature For Storage:

-15-40 °C

Body Type:

one piece moulded

Material:

ABS (acrylonitrile butadiene-styrene)

Lock Type:

captive screw flat outside sealed area

Standards:

IEC 62208

Ik Degree Of Protection:

IK07 IEC 62262

Reach Free Of Svhc:

Yes

Product Name:

Thalassa TBS

Mercury Free:

Yes

Ip Degree Of Protection:

IP66 conforming to NEMA 4.4X

Width:

93 mm

Internal Height:

125 mm

Net Weight:

0.22 kg

Quantity Per Set:

set of 2

Circularity Profile:

N/A

Product Certifications:

TÜV

Device Application:

multi-purpose

Ambient Air Temperature For Operation:

-25-60 °C

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Catalog:

View

Datasheet:

View
