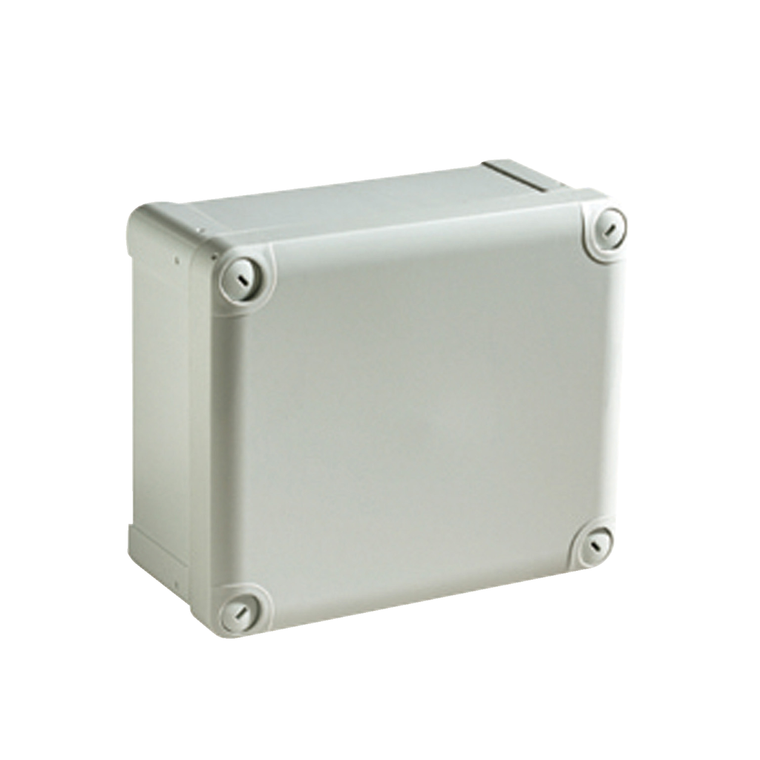

Schneider Electric NSYTBS241910H Abs Ind Box 241X192X105 Hi

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYTBS241910H Abs Ind Box 241X192X105 Hi

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYTBS241910H

UPC:

3606480165344

MPN:

Condition:

New

Toxic Heavy Metal Free:

Yes

Ambient Air Temperature For Storage:

-15-40 °C

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Ambient Air Temperature For Operation:

-25-60 °C

Internal Depth:

100 mm

Ik Degree Of Protection:

IK07 IEC 62262

Device Composition:

1 body || 1 cover || 4 cover screw

Lock Type:

captive screw flat outside sealed area

Warranty:

18 months

Color:

Gray RAL 7035)

Removable Parts:

cover by captive screws

Width:

194 mm

Type Of Front Cover:

high plain cover

Height:

241 mm

Range:

Thalassa

Product Name:

Thalassa TBS

Internal Width:

175 mm

Enclosure Mounting:

wall mounted

Internal Height:

225 mm

Environmental Disclosure:

ENVPEP2012015EN

Reach Free Of Svhc:

Yes

Electrical Insulation Class:

class II

Fire Resistance:

650 °C IEC 60695-2-11

Product Or Component Type:

industrial box

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Sustainable Offer Status:

Green Premium product

Depth:

107 mm

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Ip Degree Of Protection:

IP66 conforming to NEMA 4.4X

Rohs Exemption Information:

Yes

Mercury Free:

Yes

Product Certifications:

TÜV

Standards:

IEC 62208

Circularity Profile:

N/A

Material:

ABS (acrylonitrile butadiene-styrene)

Device Application:

multi-purpose

Cover Fixing:

plastic screws

Net Weight:

0.72 kg

Body Type:

one piece moulded

Datasheet:

View
