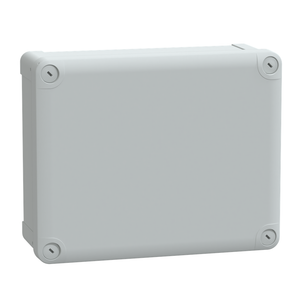

Schneider Electric NSYTBS24198T Abs Ind Box 241X192X87 Lo Tr

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYTBS24198T Abs Ind Box 241X192X87 Lo Tr

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYTBS24198T

UPC:

3606480165481

MPN:

Condition:

New

Ambient Air Temperature For Storage:

-15-40 °C

Reach Free Of Svhc:

Yes

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Device Application:

multi-purpose

Internal Height:

225 mm

Depth:

87 mm

Product Or Component Type:

industrial box

Removable Parts:

cover by captive screws

Standards:

IEC 62208

Enclosure Mounting:

wall mounted

Width:

194 mm

Range:

Thalassa

Ip Degree Of Protection:

IP66 conforming to NEMA 4.4X

Ambient Air Temperature For Operation:

-25-60 °C

Cover Fixing:

plastic screws

Lock Type:

captive screw flat outside sealed area

Rohs Exemption Information:

Yes

Fire Resistance:

650 °C IEC 60695-2-11

Height:

241 mm

Type Of Front Cover:

low transparent cover

Ik Degree Of Protection:

IK07 IEC 62262

Internal Depth:

80 mm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Electrical Insulation Class:

class II

Color:

Gray RAL 7035) || Transparent

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Body Type:

one piece moulded

Circularity Profile:

N/A

Mercury Free:

Yes

Net Weight:

0.64 kg

Internal Width:

175 mm

Material:

ABS (acrylonitrile butadiene-styrene)

Toxic Heavy Metal Free:

Yes

Warranty:

18 months

Device Composition:

1 body || 1 cover || 4 cover screw

Product Certifications:

TÜV

Sustainable Offer Status:

Green Premium product

Product Name:

Thalassa TBS

Environmental Disclosure:

ENVPEP2012015EN

Datasheet:

View
