Schneider Electric NSYTBS292412H Abs Ind Box 291X241X128 Hi
Schneider Electric
$37.56
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric NSYTBS292412H Abs Ind Box 291X241X128 Hi

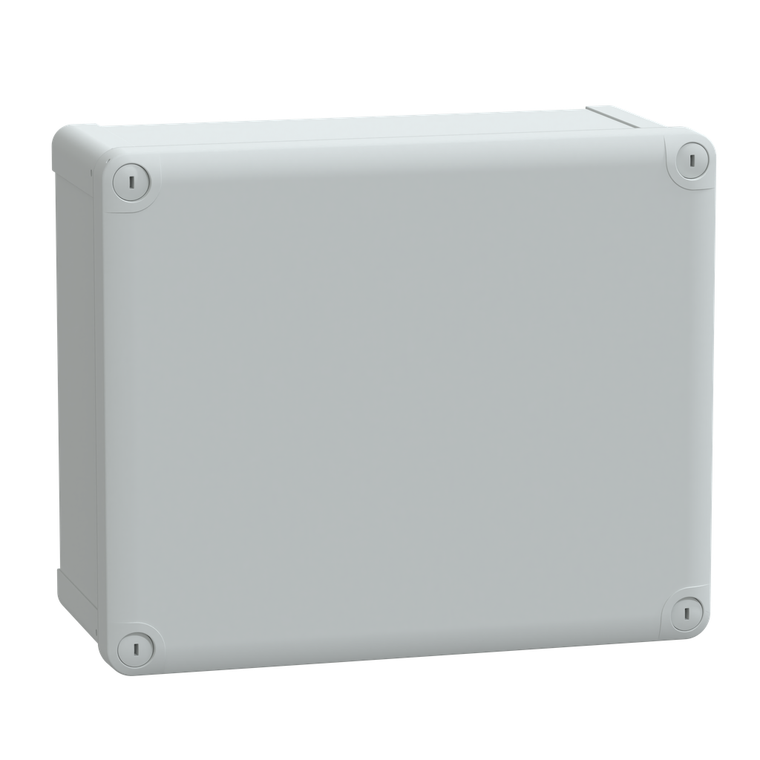

Thalassa TBS industrial ABS box with opaque cover H60. Int is 275 x 225 x 120 mm. Ext is 291 x 241 x 128 mm. Wall mounted enclosure. High plain cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV. Fire resistance 650°. ABS (acrylonitrile butadiene-styrene). IP66 (NEMA 4.4X), IK07, Grey RAL 7035, Insulation Class II. Set of 2. Ambient temperature for storage/operation is (-15 to 40°C)/(-25 to 60°C).
- Internal Depth:
- 120 mm
- Sustainable Offer Status:
- Green Premium product
- Toxic Heavy Metal Free:
- Yes
- Environmental Disclosure:
- ENVPEP2012015EN
- Device Composition:
- 1 body || 1 cover || 4 cover screw
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Mercury Free:
- Yes
- Net Weight:
- 1.1 kg
- Product Certifications:
- TÃV
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Height:
- 291 mm
- Depth:
- 128 mm
- Ambient Air Temperature For Storage:
- -15-40 °C
- Material:
- ABS (acrylonitrile butadiene-styrene)
- Ip Degree Of Protection:
- IP66 conforming to NEMA 4.4X
- Product Or Component Type:
- industrial box
- Rohs Exemption Information:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Ambient Air Temperature For Operation:
- -25-60 °C
- Warranty:
- 18 months
- Enclosure Mounting:
- wall mounted
- Reach Free Of Svhc:
- Yes
- Electrical Insulation Class:
- class II
- Standards:
- IEC 62208
- Circularity Profile:
- N/A
- Lock Type:
- captive screw flat outside sealed area
- Range:
- Thalassa
- Width:
- 241 mm
- Type Of Front Cover:
- high plain cover
- Product Name:
- Thalassa TBS
- Color:
- Gray RAL 7035)
- Internal Width:
- 225 mm
- Ik Degree Of Protection:
- IK07 IEC 62262
- Device Application:
- multi-purpose
- Internal Height:
- 275 mm
- Removable Parts:
- cover by captive screws
- Fire Resistance:
- 650 °C IEC 60695-2-11
- Cover Fixing:
- plastic screws
- Body Type:
- one piece moulded
- Datasheet:
- View
