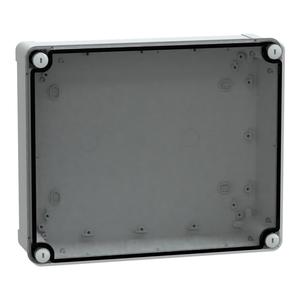

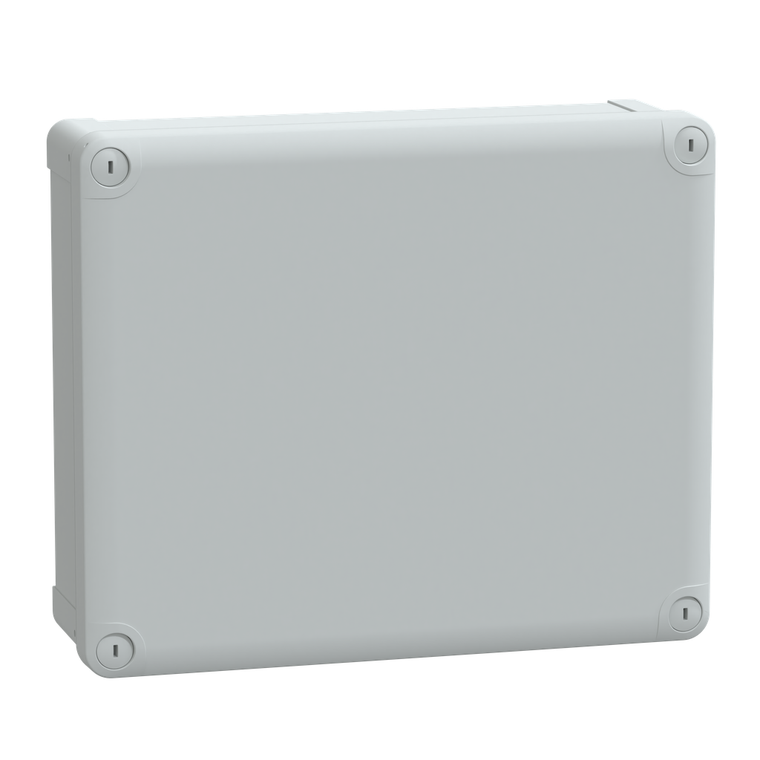

Schneider Electric NSYTBS29248 Abs Ind Box 291X241X87 Lo

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYTBS29248 Abs Ind Box 291X241X87 Lo

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYTBS29248

UPC:

3606480165368

MPN:

Condition:

New

Circularity Profile:

N/A

Warranty:

18 months

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury Free:

Yes

Product Or Component Type:

industrial box

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Body Type:

one piece moulded

Type Of Front Cover:

low plain cover

Material:

ABS (acrylonitrile butadiene-styrene)

Ambient Air Temperature For Operation:

-25-60 °C

Net Weight:

0.86 kg

Enclosure Mounting:

wall mounted

Electrical Insulation Class:

class II

Fire Resistance:

650 °C IEC 60695-2-11

Depth:

88 mm

Ip Degree Of Protection:

IP66 conforming to NEMA 4.4X

Standards:

IEC 62208

Cover Fixing:

plastic screws

Reach Free Of Svhc:

Yes

Device Composition:

1 body || 1 cover || 4 cover screw

Toxic Heavy Metal Free:

Yes

Internal Height:

275 mm

Ik Degree Of Protection:

IK07 IEC 62262

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Range:

Thalassa

Internal Depth:

80 mm

Sustainable Offer Status:

Green Premium product

Lock Type:

captive screw flat outside sealed area

Width:

241 mm

Ambient Air Temperature For Storage:

-15-40 °C

Height:

291 mm

Environmental Disclosure:

ENVPEP2012015EN

Device Application:

multi-purpose

Rohs Exemption Information:

Yes

Removable Parts:

cover by captive screws

Internal Width:

225 mm

Product Name:

Thalassa TBS

Product Certifications:

TÜV

Color:

Gray RAL 7035)

Catalog:

View

Datasheet:

View
