Schneider Electric NSYTBS342916HT Abs Ind Box 341X291X168 Hi Tr
Schneider Electric
$156.45
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric NSYTBS342916HT Abs Ind Box 341X291X168 Hi Tr

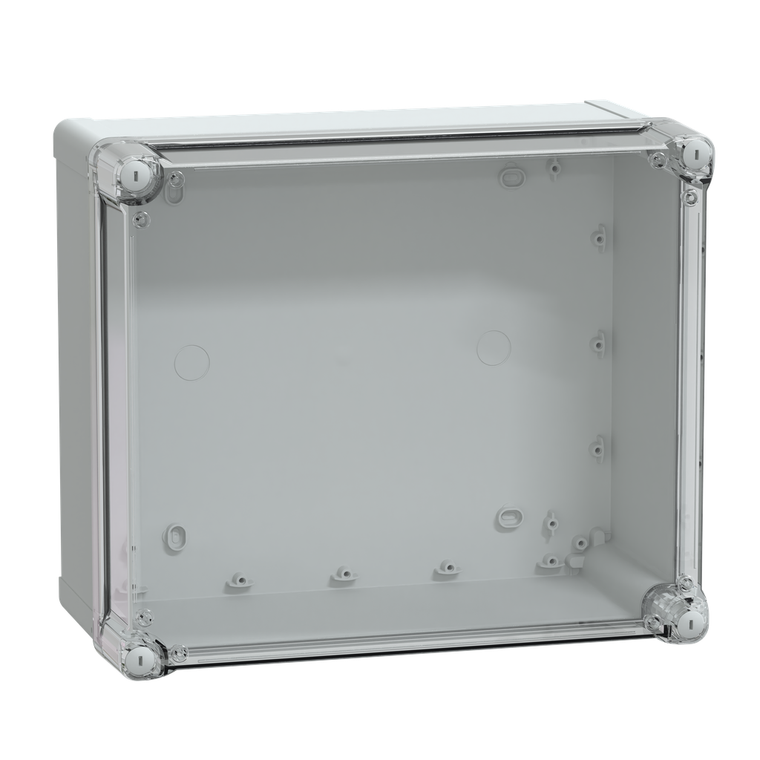

Thalassa TBS industrial ABS box with transparent cover H60. Int is 325 x 275 x 160 mm. Ext is 341 x 291 x 168 mm. Wall mounted enclosure. High transparent cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV. Fire resistance 650°. ABS (acrylonitrile butadiene-styrene). IP66 (NEMA 4.4X), IK07, Grey RAL 7035, Insulation Class II. Set of 2. Ambient temperature for storage/operation is (-15 to 40°C)/(-25 to 60°C).
- Internal Width:
- 275 mm
- Enclosure Mounting:
- wall mounted
- Warranty:
- 18 months
- Product Or Component Type:
- industrial box
- Product Name:
- Thalassa TBS
- Internal Height:
- 325 mm
- Product Certifications:
- TÃV
- Environmental Disclosure:
- ENVPEP2012015EN
- Type Of Front Cover:
- high transparent cover
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Ambient Air Temperature For Operation:
- -25-60 °C
- Device Application:
- multi-purpose
- Range:
- Thalassa
- Height:
- 341 mm
- Net Weight:
- 1.7 kg
- Depth:
- 168 mm
- Device Composition:
- 1 body || 1 cover || 4 cover screw
- Ik Degree Of Protection:
- IK07 IEC 62262
- Material:
- ABS (acrylonitrile butadiene-styrene)
- Electrical Insulation Class:
- class II
- Mercury Free:
- Yes
- Rohs Exemption Information:
- Yes
- Fire Resistance:
- 650 °C IEC 60695-2-11
- Removable Parts:
- cover by captive screws
- Toxic Heavy Metal Free:
- Yes
- Standards:
- IEC 62208
- Ip Degree Of Protection:
- IP66 conforming to NEMA 4.4X
- Color:
- Gray RAL 7035) || Transparent
- Reach Free Of Svhc:
- Yes
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Ambient Air Temperature For Storage:
- -15-40 °C
- Body Type:
- one piece moulded
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Circularity Profile:
- N/A
- Sustainable Offer Status:
- Green Premium product
- Lock Type:
- captive screw flat outside sealed area
- Width:
- 291 mm
- Internal Depth:
- 160 mm
- Cover Fixing:
- plastic screws
