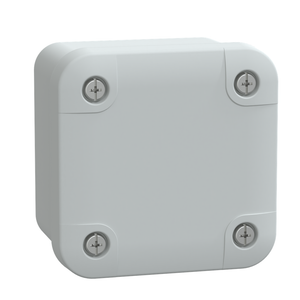

Schneider Electric NSYTBS775 Abs Ind Box 74X74X54 Lo

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYTBS775 Abs Ind Box 74X74X54 Lo

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYTBS775

UPC:

3.60648E+12

MPN:

Condition:

New

Rohs Exemption Information:

Yes

Body Type:

one piece moulded

Electrical Insulation Class:

class II

Toxic Heavy Metal Free:

Yes

Enclosure Mounting:

wall mounted

Product Or Component Type:

industrial box

Internal Depth:

47 mm

Internal Height:

65 mm

Reach Free Of Svhc:

Yes

Product Certifications:

TÜV

Environmental Disclosure:

ENVPEP2012015EN

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Device Composition:

1 body || 1 cover || 4 cover screw

Net Weight:

0.068 kg

Height:

74 mm

Quantity Per Set:

set of 5

Internal Width:

65 mm

Width:

74 mm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Circularity Profile:

N/A

Ik Degree Of Protection:

IK07 IEC 62262

Ip Degree Of Protection:

IP66 conforming to NEMA 4.4X

Standards:

IEC 62208

Product Name:

Thalassa TBS

Lock Type:

captive screw flat outside sealed area

Depth:

54 mm

Color:

Gray RAL 7035)

Sustainable Offer Status:

Green Premium product

Type Of Front Cover:

low plain cover

Ambient Air Temperature For Storage:

-15-40 °C

Fire Resistance:

650 °C IEC 60695-2-11

Removable Parts:

cover by captive screws

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Ambient Air Temperature For Operation:

-25-60 °C

Warranty:

18 months

Material:

ABS (acrylonitrile butadiene-styrene)

Mercury Free:

Yes

Device Application:

multi-purpose

Range:

Thalassa

Cover Fixing:

metal screws
