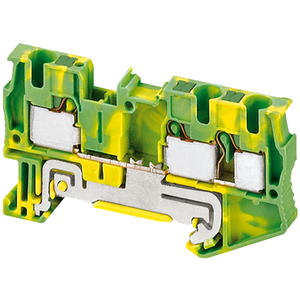

Schneider Electric NSYTRP24PE Push-In Terminal, Protective Earth, 4 Po Pack of 50

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYTRP24PE Push-In Terminal, Protective Earth, 4 Po Pack of 50

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYTRP24PE

UPC:

4360648053322

MPN:

Condition:

New

Product Compatibility:

Spacial enclosures

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Product Or Component Type:

terminal block

Length:

72 mm

Dielectric Loss:

0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4

Width:

5.2 mm

Material:

polyamide 6/6: insulating case

Product Name:

Linergy TR

Dielectric Strength:

1000 V IEC 60243-1

Reach Free Of Svhc:

Yes

Wire Stripping Length:

10 mm

Cable Cross Section:

0.08-4 mm², solid || 0.08-2.5 mm², flexible without cable end || 0-2.5 mm², flexible with cable end

Dielectric Constant:

3.7 at 1 MHz

Resistivity:

10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30

Flame Retardance:

V0 0.8 mm UL 94

Terminal Block Level:

1

Mounting Mode:

clip-on

Halogen Content Performance:

Halogen free plastic parts product

Height:

36.5 mm

Quantity Per Set:

set of 50

Warranty:

18 months

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Color:

green-yellow

Nominal Cross Section:

2.5 mm²

Creep Resistance:

500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30

Connection Position:

top

Mercury Free:

Yes

Range Compatibility:

Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys

Toxic Heavy Metal Free:

Yes

Circularity Profile:

N/A

Net Weight:

13.6 g

Range:

Linergy

Tool Type:

disconnection flat screwdriver || connection without tool

Ambient Air Temperature For Operation:

-40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21

Surface Resistance:

1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30

Number Of Measurement Input:

2

Device Short Name:

TRP

Number Of Terminals:

4

Environmental Disclosure:

ENVPEP2309020EN

Product Certifications:

IEC-Ex || VDE || cURus || EAC || GL || LR || CSA || ATEX

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Rohs Exemption Information:

Yes

Terminal Block Type:

protective earth

Connections - Terminals:

2 x push-in downstream || 2 x push-in upstream

Sustainable Offer Status:

Green Premium product
