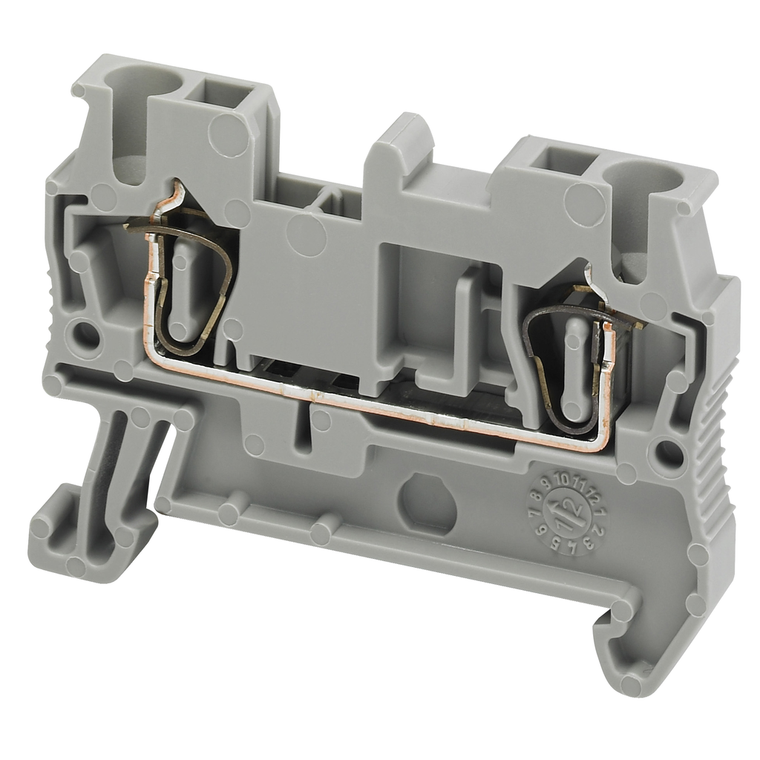

Schneider Electric NSYTRR22 Spring Terminal, Feed Through, 2 Points, Pack of 50
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 2.5 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/cURus and 800V conforming to EN/IEC 60947-7-1. The rated current is 24A conforming to EN/IEC 60947-7-1 and 20A conforming to CSA and cURus. It has grey surface treatment. Mounting by clip-on and top connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH).
- Tool Type:
- connection flat screwdriver || disconnection flat screwdriver
- Resistivity:
- 10000 Mâ¦.m IEC 60093 || 10000 Mâ¦.m VDE 0303-T30
- Terminal Block Type:
- passthrough
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Range Compatibility:
- Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
- Length:
- 48.5 mm
- Product Name:
- Linergy TR
- Toxic Heavy Metal Free:
- Yes
- Dielectric Strength:
- 1000 V IEC 60243-1
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Height:
- 36.5 mm
- Connections - Terminals:
- 1 x spring terminal upstream || 1 x spring terminal downstream
- Creep Resistance:
- 500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
- Product Certifications:
- EAC || LR || VDE || cURus || CSA || IEC-Ex || DNV || ATEX || GL
- Reach Free Of Svhc:
- Yes
- Net Weight:
- 5.6 g
- Color:
- Gray
- Material:
- polyamide 6/6: insulating case || copper alloy: connector and screw || copper alloy: commoning link || chromium-nickel steel: spring
- Wire Stripping Length:
- 10 mm
- Flame Retardance:
- V0 0.8 mm UL 94
- Warranty:
- 18 months
- Width:
- 5.2 mm
- [Ue] Rated Operational Voltage:
- 600 V CSA || 800 V EN/IEC 60947-7-1 || 600 V cURus
- Halogen Content Performance:
- Halogen free plastic parts product
- Sustainable Offer Status:
- Green Premium product
- Surface Resistance:
- 1000 G⦠IEC 60093 || 1000 G⦠VDE 0303-T30
- Range:
- Linergy
- Dielectric Constant:
- 3.7 at 1 MHz
- Cable Cross Section:
- 0.08-2.5 mm², flexible without cable end || 0.08-4 mm², solid with cable end || 0.2-2.5 mm², flexible with cable end || 0.08-4 mm², solid without cable end
- Line Rated Current:
- 20-20 A CSA || 20-20 A cURus || 24-24 A EN/IEC 60947-7-1
- Number Of Measurement Input:
- 2
- Quantity Per Set:
- set of 50
- Ambient Air Temperature For Operation:
- -40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21
- Number Of Terminals:
- 2
- Product Compatibility:
- Spacial enclosures
- Nominal Cross Section:
- 2.5 mm²
- Device Short Name:
- TRR
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Environmental Disclosure:
- ENVPEP2309017EN
- Mounting Mode:
- clip-on
- Product Or Component Type:
- terminal block
- Accessory / Separate Part Category:
- connection accessory
- Connection Position:
- top
- Terminal Block Level:
- 1
- Dielectric Loss:
- 0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
- Mercury Free:
- Yes
- Rohs Exemption Information:
- Yes
- Circularity Profile:
- N/A
