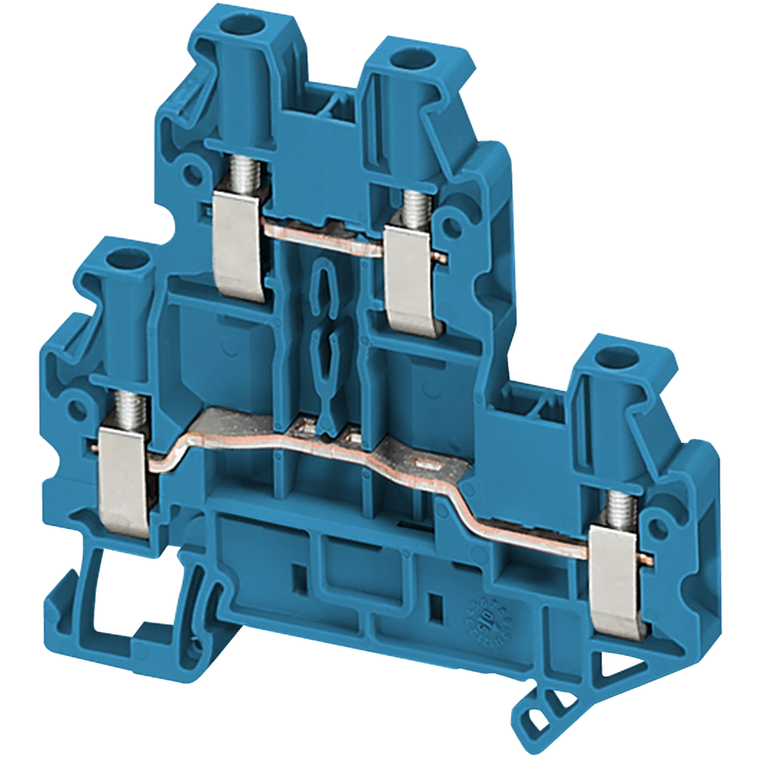

Schneider Electric NSYTRV24DBL Screw Terminal,2 Level, 4Pts,2,5Mma Pack of 50

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYTRV24DBL Screw Terminal,2 Level, 4Pts,2,5Mma Pack of 50

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYTRV24DBL

UPC:

3606480531866

MPN:

Condition:

New

Number Of Terminals:

2

Product Certifications:

GL || ATEX || CSA || EAC || LR || DNV || IEC-Ex || cURus

Mercury Free:

Yes

Quantity Per Set:

set of 50

Accessory / Separate Part Category:

connection accessory

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Connections - Terminals:

1 x screw terminal upstream M3) || 1 x screw terminal downstream M3)

Terminal Block Level:

2

Flame Retardance:

V0 0.8 mm UL 94

Range Compatibility:

Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys

Height:

65 mm

Material:

polyamide 6/6: insulating case || copper alloy: connector and screw || copper alloy: commoning link || chromium-nickel steel: spring

Product Or Component Type:

terminal block

Rohs Exemption Information:

Yes

Product Compatibility:

Spacial enclosures

Number Of Measurement Input:

4

Dielectric Strength:

1000 V IEC 60243-1

[Ue] Rated Operational Voltage:

600 V CSA || 500 V EN/IEC 60947-7-1 || 352 V ATEX Exe II Ex II 2 GD || 600 V cURus

Terminal Block Type:

passthrough

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Device Short Name:

TRV

Halogen Content Performance:

Halogen free plastic parts product

Tightening Torque:

0.5-0.6 N.m

Circularity Profile:

N/A

Sustainable Offer Status:

Green Premium product

Eu Rohs Directive:

Compliant with Exemptions

Wire Stripping Length:

9 mm

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Dielectric Constant:

3.7 at 1 MHz

Ambient Air Temperature For Operation:

-40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Width:

5.2 mm

Mounting Mode:

clip-on

Length:

69.9 mm

Surface Resistance:

1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30

Dielectric Loss:

0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4

Resistivity:

10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30

Connection Position:

sideways

Nominal Cross Section:

2.5 mm²

Line Rated Current:

24-24 A EN/IEC 60947-7-1 || 20-20 A cURus || 20-20 A CSA || 20-20 A ATEX Exe II Ex II 2 GD

Cable Cross Section:

0.14-4 mm², solid with cable end || 0.2-2.5 mm², flexible with cable end || 0.14-4 mm², solid without cable end || 0.14-4 mm², flexible without cable end

Warranty:

18 months

Tool Type:

connection screwdriver || disconnection screwdriver

Creep Resistance:

500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30

Range:

Linergy

Environmental Disclosure:

ENVPEP2309018EN

Color:

Blue

Product Name:

Linergy TR

Net Weight:

15.3 g

Catalog:

View

Datasheet:

View
