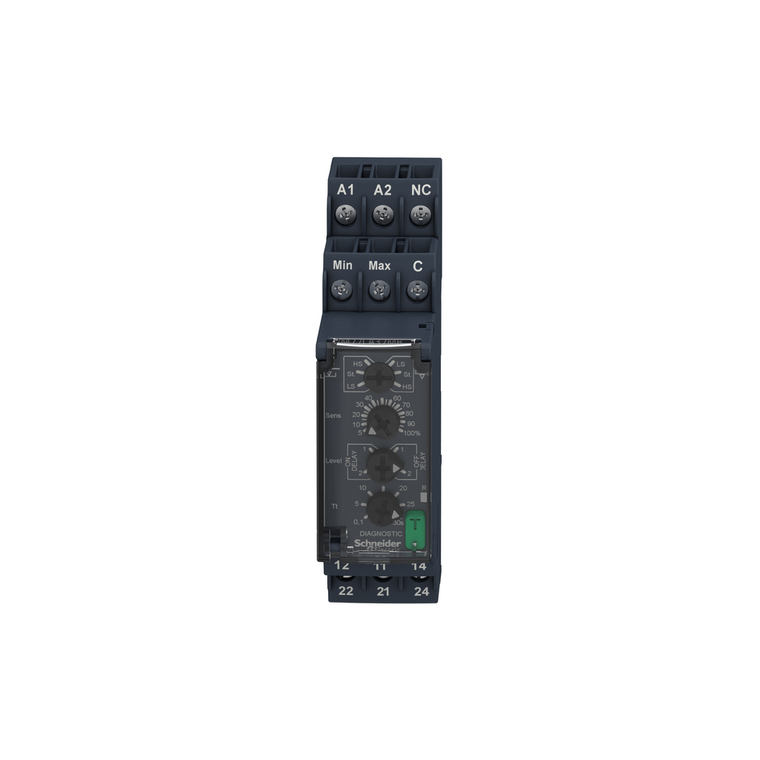

Schneider Electric RM22LA32MR Level Control Relay Rm22-Lg - Range 0,25

Schneider Electric RM22LA32MR Level Control Relay Rm22-Lg - Range 0,25

Schneider Electric
SKU:
RM22LA32MR
|
UPC:
3606480792342
Availability:
Contact us to confirm availability and lead times.
$70.61
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Harmony RM22-LA relay allows monitoring of liquid level control in 3-phase networks. This modular multi function 3-phase liquid level control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slim form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a diagnostic button, sealable cover, simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0
Additional Information
Measurement Error:
< 1 % over the whole range with voltage variation || 0.05 %/°C with temperature variation
Product Or Component Type:
level control relay
Nominal Output Current:
0.333333333333333
Contacts Type And Composition:
2 C/O
Overvoltage Category:
III IEC 60664-1
Dielectric Test Voltage:
2.5 kV AC 50 Hz, 1 min IEC 60255-27
[Us] Rated Supply Voltage:
AC/DC non self-powered
Tightening Torque:
0.6-1 N.m IEC 60947-1
Connections - Terminals:
screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end || screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end |
Vibration Resistance:
0.075 mm 10-58.1 Hz) not in operation IEC 60068-2-6 || 1 gn 10-58.1 Hz) not in operation IEC 60068-2-6 || 0.035 mm 58.1-150 Hz) in operation IEC 60068-2-6 || 0.5 gn 58.1-150 Hz) in operation IEC 60068-2-6
China Rohs Regulation:
X
Standards:
IEC 60255-1
Sensitivity Adjustment:
5-100 %
Insulation:
between supply and measurement
Output Contacts:
2 C/O
Maximum Power Consumption In W:
1.5 W DC
Cable Capacitance:
1 nF HS (High Sensitivity) probe cable || 2.2 nF St (Standard Sensitivity) probe cable || 4.7 nF LS (Low Sensitivity) probe cable
Repeat Accuracy:
+/- 2 % time delay
Mechanical Durability:
10000000 cycles
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Maximum Electrode Current:
1 mA
Mounting Support:
35 mm DIN rail conforming to IEC 60715
Maximum Switching Current:
8 A AC
Electromagnetic Compatibility:
immunity for residential, commercial and light-industrial environments conforming to IEC 61000-6-1 || immunity for industrial environments conforming to IEC 61000-6-2 || emission standard for residential, commercial and light-industrial environments
Housing Material:
self-extinguishing plastic
Relay Monitored Parameters:
detection by resistive probes
Shock Resistance:
15 gn 11 ms) not in operation IEC 60068-2-27 || 5 gn 11 ms) in operation IEC 60068-2-27
Switching Capacity In Va:
2000 VA
Immunity To Microbreaks:
100 ms DC || 90 ms AC
Maximum Supply Current For Sensors:
1 mA
Relay Name:
RM22L
Net Weight:
0.11 kg
Safety Reliability Data:
MTTFd = 182.6 years || B10d = 170000
Pollution Degree:
3 IEC 60664-1
Maximum Switching Voltage:
250 V AC
Sensitivity Scale:
0.25...5 kOhm LS (Low Sensitivity) || 5...100 kOhm St (Standard Sensitivity) || 50...1000 kOhm HS (High Sensitivity)
Minimum Switching Current:
10 mA 5 V DC
Contacts Material:
cadmium free
Ip Degree Of Protection:
IP20 IEC 60529 terminals) || IP40 IEC 60529 housing) || IP50 IEC 60529 front panel)
Range Of Product:
Harmony Control Relays
Environmental Disclosure:
ENVPEP1504008EN
Product Certifications:
UL || RCM || CSA || GL || CCC || CE || EAC
Utilisation Category:
AC-15 IEC 60947-5-1 || DC-13 IEC 60947-5-1 || AC-1 IEC 60947-4-1 || DC-1 IEC 60947-4-1
Electrical Durability:
100000 cycles
Sustainable Offer Status:
Green Premium product
Measurement Range:
0.25...1000 Ohm
Relay Type:
level control relay
Maximum Electrode Voltage:
12 V AC
Mounting Position:
any position
Time Delay Type:
adjustable 0.1...30 s, +/- 10 % of the full scale value Tt- time delay upon fault
Run-Up Delay At Power-Up:
2.5 s || 0.6 s
Width:
22.5 mm
Supply Voltage Limits:
20.4-264 V AC/DC
Circularity Profile:
ENVEOLI1504008EN
Ambient Air Temperature For Storage:
-40-70 °C
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Mercury Free:
Yes
Maximum Cable Distance Between Devices:
100 m probe and delay
Rohs Exemption Information:
Yes
Relative Humidity:
93-97 % 25-55 °C IEC 60068-2-30
