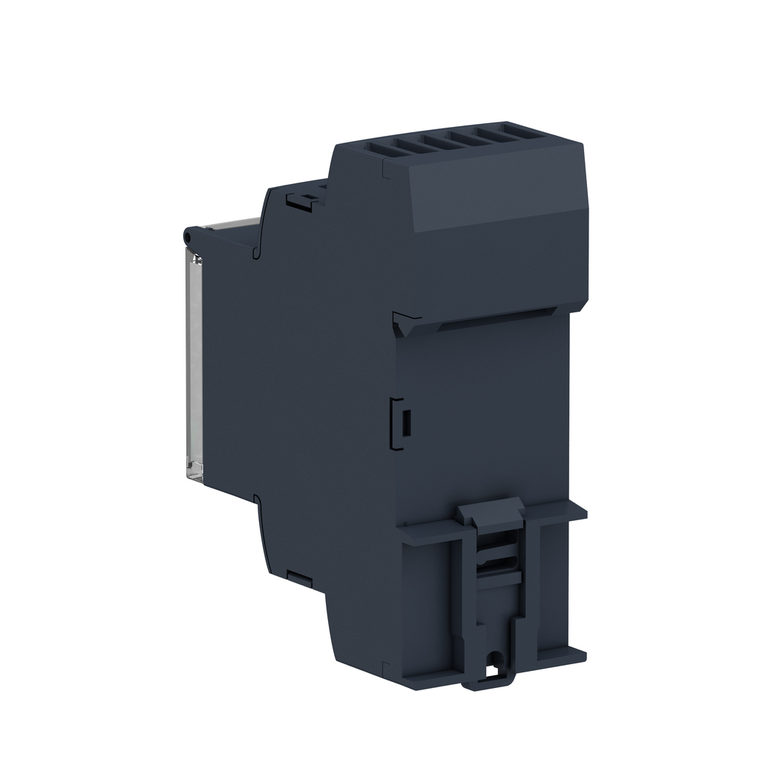

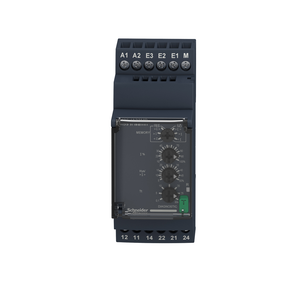

Schneider Electric RM35JA32MT Current Control Relay Rm35-Ja - Range 0,
Schneider Electric
$132.89
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony RM35-JA relay allows monitoring of current control in single phase networks. This modular multi function single phase current control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market medium form-factors with 35mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device. It also offers a diagnostic button, sealable cover, simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0
- Reset Time:
- 1500 ms at maximum voltage
- Local Signalling:
- for relay ON LED (yellow) || for power ON LED (green)
- Ambient Air Temperature For Operation:
- -20-50 °C 60 Hz || -20-60 °C 50 Hz
- Pollution Degree:
- 3 IEC 60664-1 || 3 UL 508
- Mercury Free:
- Yes
- Circularity Profile:
- ENVEOLI1504008EN
- Minimum Switching Current:
- 10 mA 5 V DC
- Response Time:
- <= 500 ms (on crossing the threshold)
- Sustainable Offer Status:
- Green Premium product
- Maximum Switching Current:
- 8 A AC
- Immunity To Microbreaks:
- 50 ms
- Switching Capacity In Va:
- 2000 VA
- Insulation:
- between supply and measurement
- Electromagnetic Compatibility:
- immunity for residential, commercial and light-industrial environments conforming to IEC 61000-6-1 || immunity for industrial environments conforming to IEC 61000-6-2 || emission standard for industrial environments conforming to IEC 61000-6-4 || ele
- Width:
- 35 mm
- Housing Material:
- self-extinguishing plastic
- Tightening Torque:
- 0.6-1 N.m IEC 60947-1
- Run-Up Delay At Power-Up:
- 0.3 s
- Standards:
- IEC 60255-1
- Control Circuit Voltage Limits:
- 15 % + 10 % Un
- Shock Resistance:
- 15 gn 11 ms) not in operation IEC 60068-2-27 || 5 gn 11 ms) in operation IEC 60068-2-27
- Relative Humidity:
- 93-97 % 25-55 °C IEC 60068-2-30
- Mechanical Durability:
- 10000000 cycles
- Vibration Resistance:
- 0.075 mm 10-58.1 Hz) not in operation IEC 60068-2-6 || 1 gn 10-58.1 Hz) not in operation IEC 60068-2-6 || 0.035 mm 58.1-150 Hz) in operation IEC 60068-2-6 || 0.5 gn 58.1-150 Hz) in operation IEC 60068-2-6
- Ambient Air Temperature For Storage:
- -40-70 °C
- Control Type:
- with test button
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Measurement Range:
- 0.15...1.5 A AC/DC E1-M terminals || 0.5...5 A E2-M terminals || 1.5...15 A E3-M terminals || 150 mA...15 A current AC/DC 50/60 Hz
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Maximum Measuring Cycle:
- 100 ms measurement cycle as true rms value
- Contacts Material:
- cadmium free
- Contacts Type And Composition:
- 2 C/O
- Internal Input Resistance:
- 0.005 Ohm || 0.015 Ohm || 0.05 Ohm
- Insulation Resistance:
- > 100 MOhm 500 V DC IEC 60255-27
- Product Or Component Type:
- current control relay
- Product Certifications:
- CCC || EAC || CSA || RCM || UL || GL || CE
- Switching Threshold Drift:
- <= 0.05 % per degree centigrade depending permissible ambient air temperature || <= 1 % within the supply voltage range
- Dielectric Test Voltage:
- 2.5 kV AC 50 Hz, 1 min IEC 60255-27
- Environmental Disclosure:
- ENVPEP1504008EN
- Measurement Error:
- < 1 % over the whole range with voltage variation || 0.05 %/°C with temperature variation
- Maximum Switching Voltage:
- 250 V AC
- Electrical Durability:
- 100000 cycles
- China Rohs Regulation:
- X
- Utilisation Category:
- AC-15 IEC 60947-5-1 || DC-13 IEC 60947-5-1 || AC-1 IEC 60947-4-1 || DC-1 IEC 60947-4-1
- Connections - Terminals:
- screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end || screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end |
- Safety Reliability Data:
- MTTFd = 296.8 years || B10d = 270000
- Rohs Exemption Information:
- Yes
- Hysteresis:
- 5-50 % adjustable threshold setting || 3-3 % fixed full scale for window mode
- Range Of Product:
- Harmony Control Relays
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Resistance Across Terminals:
- 0.005 Ohm E3-M terminals || 0.015 Ohm E2-M terminals || 0.05 Ohm E1-M terminals
- [Us] Rated Supply Voltage:
- AC non self-powered
- Relay Name:
- RM35JA
- Relay Type:
- current control relay
- Mounting Support:
- 35 mm DIN rail conforming to IEC 60715
- Output Contacts:
- 2 C/O
- Relay Monitored Parameters:
- overcurrent or undercurrent detection || overcurrent or undercurrent in window mode
- Environmental Characteristic:
- 3K3 C
- Time Delay Drift:
- <= 0.05 % per degree centigrade depending permissible ambient air temperature || <= 1 % within the supply voltage range
- Nominal Output Current:
- 0.333333333333333
- Time Delay Type:
- adjustable 0.1...30 s, +/- 10 % of the full scale value Tt- time delay upon fault
- Setting Accuracy Of Time Delay:
- 0.916666666666667
- Overvoltage Category:
- III IEC 60664-1 || III UL 508
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Net Weight:
- 0.12 kg
- Ip Degree Of Protection:
- IP20 IEC 60529 terminals) || IP50 IEC 60529 front panel) || IP30 IEC 60529 housing)
- Supply Voltage Limits:
- 323-456.5 V AC
- Repeat Accuracy:
- +/- 0.5 % input and measurement circuit || +/- 2 % time delay
- Threshold Setting:
- 10...100 %
- Maximum Power Consumption In Va:
- 8 VA
- Setting Accuracy Of The Switching Threshold:
- +/- 10 % of the full scale || +/- 20 % of the full scale
