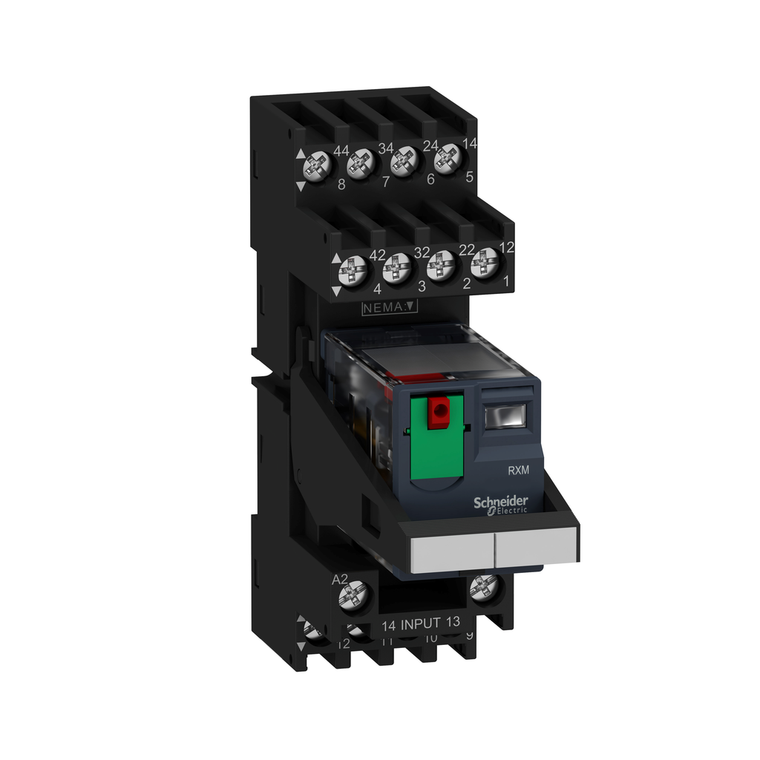

Schneider Electric RXM4AB2P7PVM miniature plug in relay pre assembled, Harmony Electromechanical Relays, 6A, 4CO, with LED, lockable test but to n, mixed terminals socket, 230V AC
Schneider Electric
$26.05
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric RXM4AB2P7PVM miniature plug in relay pre assembled, Harmony Electromechanical Relays, 6A, 4CO, with LED, lockable test but to n, mixed terminals socket, 230V AC
This miniature Plug-In relay belongs to the Schneider Electric Harmony electromechanical relays range. This is a pre-assembled relay mounted on a mixed contact terminal socket with integrated clamp and legend. This is a 6A, 230Vac, 4 CO miniature mechanical relay. This pre-mounted relay is a ready-to-go package saving assembly time. It also offers one-step lockable test button and LED indicator. The miniature relay socket connection is by screw connector or screw clamp terminal type. This pre-assembled relay weighs 0.099Kg. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, UL, EAC, CSA, Lloyd's, RoHS and REACH. It is sold in lots of 30. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A) or 4 CO (6A) contacts.
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reset Time:
- 20 ms
- Ip Degree Of Protection:
- IP20 conforming to IEC 60529
- Operating Time:
- 20 ms
- Continuous Output Current:
- 0.208333333333333
- Contacts Type And Composition:
- 4 C/O
- Average Coil Consumption:
- 1.2 W, AC
- Circularity Profile:
- ENVEOLI2106019EN
- Maximum Switching Capacity:
- 1500 VA/168 W AC/DC
- Sustainable Offer Status:
- Green Premium product
- Pollution Degree:
- 2
- Weight:
- 0.096 kg
- Torque Value:
- 1 N.m
- Vibration Resistance:
- 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
- Dielectric Strength:
- 1300 V AC between contacts with micro disconnection || 2000 V AC between coil and contact with basic insulation || 2000 V AC between poles with basic insulation
- Utilisation Coefficient:
- 0.2
- Protection Category:
- RT I
- [Ie] Rated Operational Current:
- 3 A 28 V DC) NC IEC || 3 A 250 V AC) NC IEC || 6 A 28 V DC) NO IEC || 6 A 250 V AC) NO IEC || 6 A 277 V AC) UL || 8 A 30 V DC) UL
- Country of Origin:
- Indonesia
- Ambient Air Temperature For Operation:
- -40-55°C
- Standards:
- UL 508 || IEC 61810-1 || CSA C22.2 No 14 || IEC 61984
- [Uc] Control Circuit Voltage:
- 230 V AC 50/60 Hz
- Warranty:
- 18 Months
- Shock Resistance:
- 10 gnin operation || 30 gnnot operating
- Safety Reliability Data:
- B10d = 100000
- Series Name:
- Miniature
- Minimum Switching Current:
- 10 mA
- Product Or Component Type:
- pre-assembled plug-in relay with socket
- Status Led:
- with
- Sale Per Indivisible Quantity:
- 30
- Ambient Air Temperature For Storage:
- -40-85°C
- Average Resistance:
- 15000 Ohm 20°C +/- 15 %
- Test Levels:
- level A group mounting
- Toxic Heavy Metal Free:
- Yes
- Control Type:
- lockable test button
- Minimum Switching Capacity:
- 170 mW 10 mA, 17 V
- Cad Overall Height:
- 79 mm
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Mercury Free:
- Yes
- Load Current:
- 6 A 250 V AC || 6 A 28 V DC
- Reach Free Of Svhc:
- Yes
- China Rohs Regulation:
- X
- Electrical Durability:
- 100000 cycles resistive
- Cad Overall Width:
- 26.9 mm
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Contacts Material:
- AgNi
- Operating Rate:
- <= 1200 cycles/hour under load || <= 18000 cycles/hour no-load
- Operating Position:
- any position
- Height:
- 79 mm
- [Ui] Rated Insulation Voltage:
- 250 V IEC
