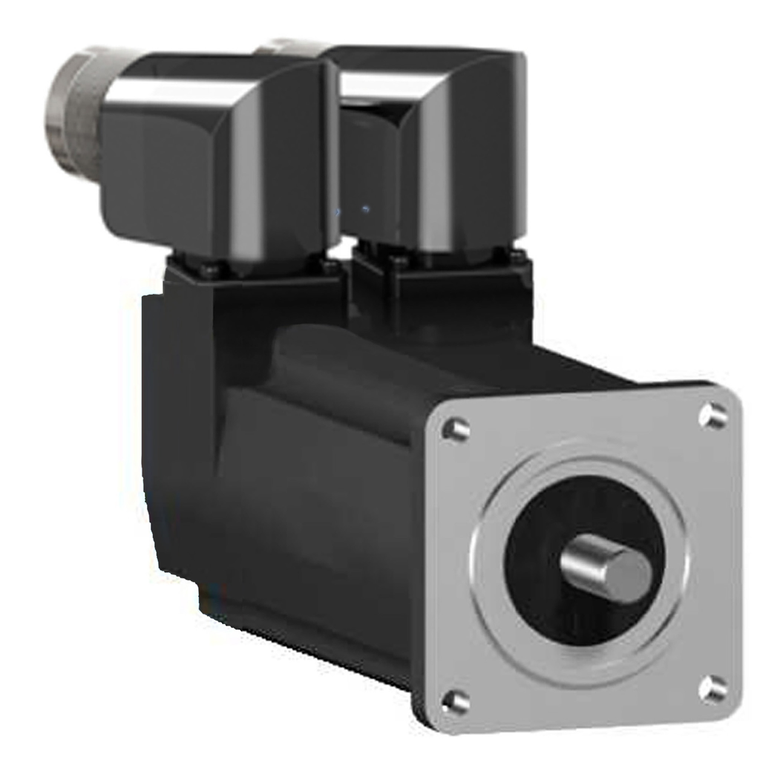

Schneider Electric SH30552P01A2100 servo motor SH3 055 0,71Nm,nokey,single,nobrake,90°conn.IP65/IP65,9k RPM
SKU:
SH30552P01A2100
UPC:
MPN:
SH30552P01A2100
Condition:
New
Speed Feedback Resolution:
128 periods
Phase:
three phase
Continuous Power:
530 W
Rohs Exemption Information:
Yes
Centring Collar Depth:
2 mm
Ip Degree Of Protection:
IP65 motor: conforming to EN/IEC 60034-5 || IP65 shaft bushing: conforming to EN/IEC 60034-5
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Maximum Axial Force Fa:
40 N
Maximum Mechanical Speed:
9000 rpm
Maximum Current Irms:
4.8 A
Device Short Name:
SH3.....P
Mounting Support:
international standard flange
Back Emf Constant:
40 V/krpm 20°C
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Product Or Component Type:
servo motor
Electrical Connection:
rotatable right angled connector
Peak Stall Torque:
2.5 N.m 115...480 V three phase
Pvc Free:
Yes
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Nominal Output Power:
160 W 115 V single phase || 310 W 230 V single phase || 600 W 400 V three phase || 670 W 480 V three phase
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Range Compatibility:
PacDrive 3
Stator Resistance:
17.4 Ohm
Mercury Free:
Yes
Number Of Mounting Holes:
4
Shaft Diameter:
9 mm
Environmental Disclosure:
ENVPEP111049EN
Nominal Speed:
4000 rpm 230 V single phase || 9000 rpm 480 V three phase || 2000 rpm 115 V single phase || 8000 rpm 400 V three phase
Continuous Stall Current:
1.2 A
Mounting Holes Diameter:
5.5 mm
Warranty:
18 months
Centring Collar Diameter:
40 mm
Sustainable Offer Status:
Green Premium product
Net Weight:
1.5 kg
Weight:
1.5 kg
Continuous Stall Torque:
0.71 N.m 115...480 V three phase
[Us] Rated Supply Voltage:
115...480 V
Type Of Cooling:
natural convection
Circle Diameter Of The Mounting Holes:
63 mm
Number Of Motor Poles:
3
Stator Inductance:
53.54 mH
Circularity Profile:
N/A
Maximum Radial Force Fr:
370 N 1000 rpm || 290 N 2000 rpm || 260 N 3000 rpm || 230 N 4000 rpm || 220 N 5000 rpm || 200 N 6000 rpm || 190 N 7000 rpm || 190 N 8000 rpm
Nominal Torque:
0.77 N.m 115 V single phase || 0.75 N.m 230 V single phase || 0.63 N.m 400 V three phase || 0.63 N.m 480 V three phase
