Schneider Electric

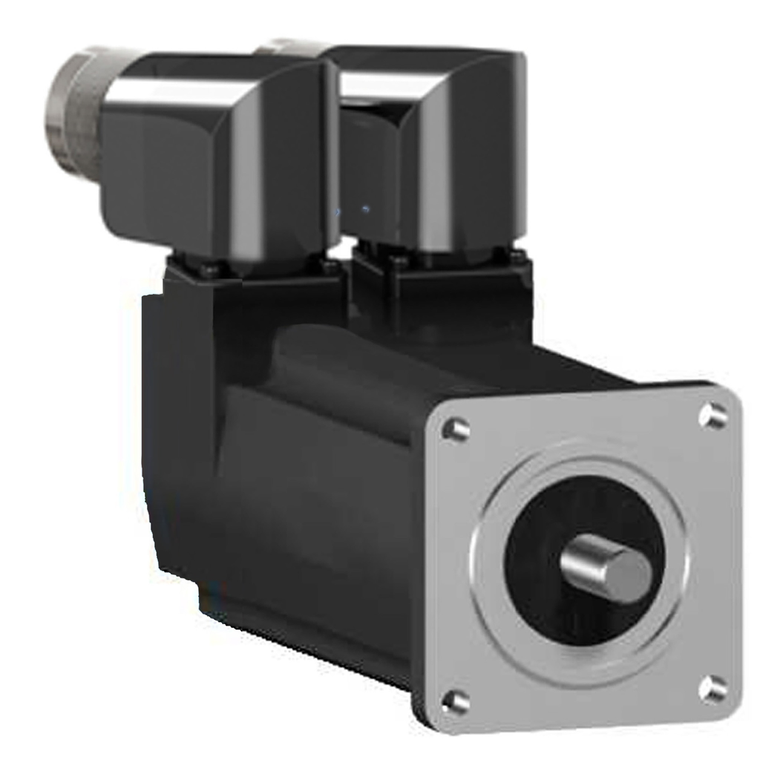

Schneider Electric SH30553P01F2100 servo motor SH3 055 1,05Nm,nokey,single,brake,90°conn.IP65/IP65,9k RPM

SKU:

SH30553P01F2100

UPC:

MPN:

SH30553P01F2100

Condition:

New

Sustainable Offer Status:

Green Premium product

Centring Collar Diameter:

40 mm

Circle Diameter Of The Mounting Holes:

63 mm

Phase:

three phase

Holding Torque:

0.8 N.m

Rotor Inertia:

0.155 kg.cm²

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Maximum Mechanical Speed:

9000 rpm

Continuous Stall Torque:

1.05 N.m 115...480 V three phase

Warranty:

18 months

Motor Flange Size:

55 mm

Centring Collar Depth:

2 mm

Type Of Cooling:

natural convection

Shaft Diameter:

9 mm

Torque Constant:

0.62 N.m/A 120°C

Stator Resistance:

10.4 Ohm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Maximum Radial Force Fr:

190 N 8000 rpm || 390 N 1000 rpm || 310 N 2000 rpm || 270 N 3000 rpm || 240 N 4000 rpm || 230 N 5000 rpm || 210 N 6000 rpm || 200 N 7000 rpm

Mounting Support:

international standard flange

Nominal Speed:

4000 rpm 230 V single phase || 9000 rpm 480 V three phase || 2000 rpm 115 V single phase || 8000 rpm 400 V three phase

Environmental Disclosure:

ENVPEP111049EN

Nominal Output Power:

240 W 115 V single phase || 460 W 230 V single phase || 880 W 400 V three phase || 970 W 480 V three phase

Pvc Free:

Yes

Range Compatibility:

PacDrive 3

Maximum Axial Force Fa:

40 N

Product Or Component Type:

servo motor

Speed Feedback Resolution:

128 periods

Rohs Exemption Information:

Yes

Continuous Stall Current:

1.7 A

Encoder Type:

absolute single turn SinCos Hiperface

Stator Inductance:

37.98 mH

Mercury Free:

Yes

China Rohs Regulation:

X

Weight:

1.9 kg

Peak Stall Torque:

3.5 N.m 115...480 V three phase

Mounting Holes Diameter:

5.5 mm

Ip Degree Of Protection:

IP65 motor: conforming to EN/IEC 60034-5 || IP65 shaft bushing: conforming to EN/IEC 60034-5

Shaft End:

smooth shaft

Electrical Connection:

rotatable right angled connector

Number Of Motor Poles:

3

Nominal Torque:

1.13 N.m 115 V single phase || 1.1 N.m 230 V single phase || 0.81 N.m 400 V three phase || 0.81 N.m 480 V three phase

Continuous Power:

680 W

[Us] Rated Supply Voltage:

115...480 V

Back Emf Constant:

41 V/krpm 20°C

Device Short Name:

SH3.....P

Country of Origin:

United States

Holding Brake:

with
