Schneider Electric

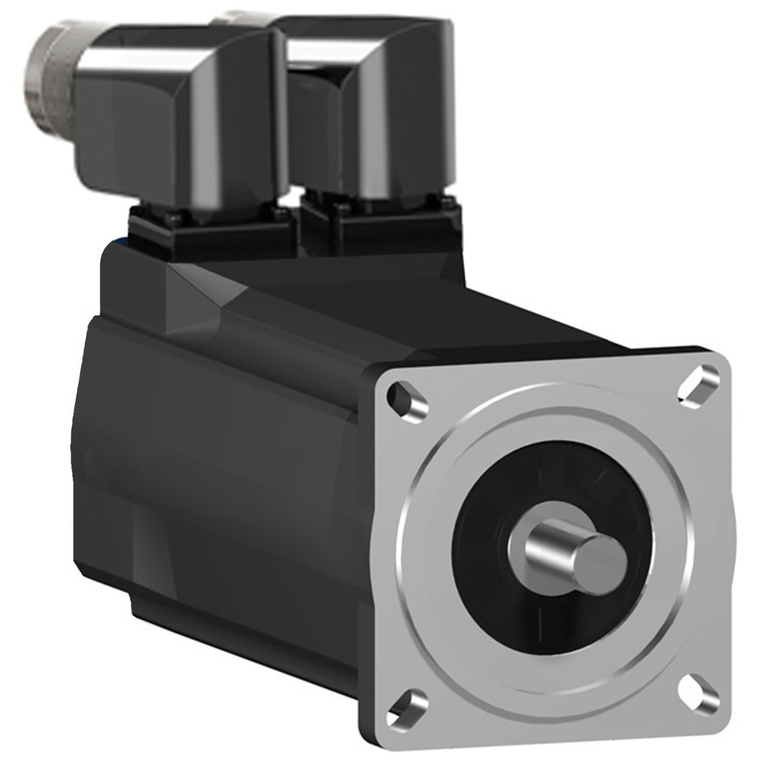

Schneider Electric SH30702P02A2200 servo motor SH3 070 2,04Nm,nokey,multi,nobrake,90°conn.IP65/IP67,8k RPM

SKU:

SH30702P02A2200

UPC:

MPN:

SH30702P02A2200

Condition:

New

Type Of Cooling:

natural convection

Country of Origin:

United States

[Us] Rated Supply Voltage:

115...480 V

Torque Constant:

0.7 N.m/A 120°C

Number Of Motor Poles:

3

Speed Feedback Resolution:

128 periods

Shaft Length:

23 mm

Nominal Output Power:

340 W 115 V single phase || 660 W 230 V single phase || 1190 W 400 V three phase || 1360 W 480 V three phase

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Weight:

2.8 kg

Circularity Profile:

N/A

Electrical Connection:

straight connector

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Mercury Free:

Yes

Mounting Support:

international standard flange

Maximum Current Irms:

11.8 A

Mounting Holes Diameter:

5.5 mm

Stator Resistance:

4.2 Ohm

Circle Diameter Of The Mounting Holes:

82 mm

Maximum Mechanical Speed:

8000 rpm

Phase:

three phase

Net Weight:

2.8 kg

Continuous Stall Torque:

2.04 N.m 115...480 V three phase

Centring Collar Depth:

2.5 mm

Shaft Diameter:

11 mm

Ip Degree Of Protection:

IP65 motor: conforming to EN/IEC 60034-5 || IP65 shaft bushing: conforming to EN/IEC 60034-5 || IP67 housing: conforming to EN/IEC 60034-5

Sustainable Offer Status:

Green Premium product

Maximum Axial Force Fa:

80 N

Encoder Type:

absolute multiturn SinCos Hiperface

Pvc Free:

Yes

Back Emf Constant:

48 V/krpm 20°C

Motor Flange Size:

70 mm

Stator Inductance:

29.65 mH

Continuous Stall Current:

2.9 A

Warranty:

18 months

Peak Stall Torque:

7.6 N.m 115...480 V three phase

Centring Collar Diameter:

60 mm

Number Of Mounting Holes:

4

Continuous Power:

1130 W

Nominal Torque:

2.15 N.m 115 V single phase || 2.1 N.m 230 V single phase || 1.8 N.m 400 V three phase || 1.8 N.m 480 V three phase

Nominal Speed:

1500 rpm 115 V single phase || 3000 rpm 230 V single phase || 6000 rpm 400 V three phase || 7200 rpm 480 V three phase

Device Short Name:

SH3.....P

Range Compatibility:

PacDrive 3

China Rohs Regulation:

X

Product Or Component Type:

servo motor

Maximum Radial Force Fr:

710 N 1000 rpm || 560 N 2000 rpm || 490 N 3000 rpm || 450 N 4000 rpm || 410 N 5000 rpm || 390 N 6000 rpm

Rohs Exemption Information:

Yes

Shaft End:

smooth shaft
