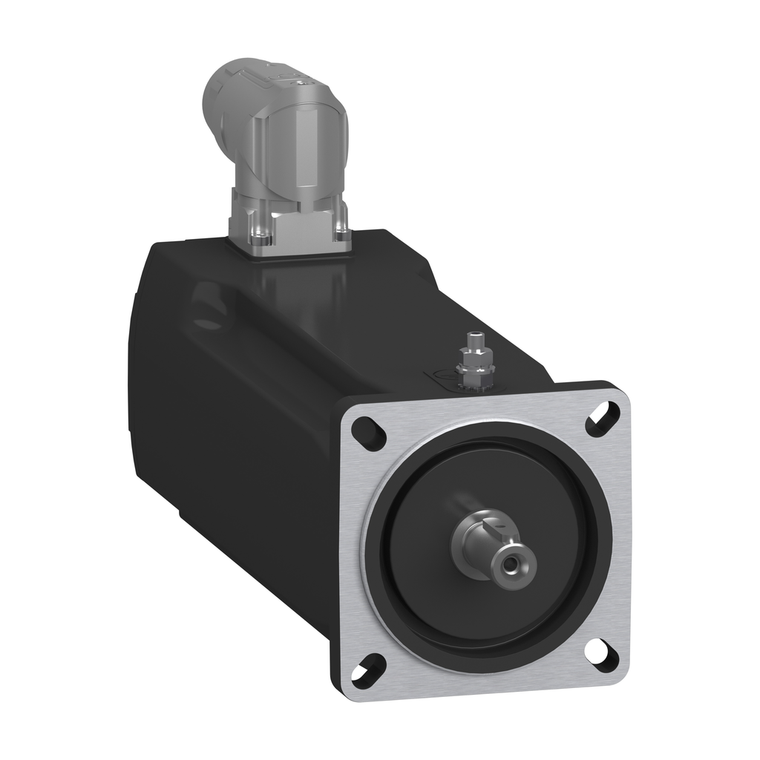

Schneider Electric SH30702P1BA4100 Sh3 Motor 070.2 Key Mlt Omc Ang Ip65

Schneider Electric SH30702P1BA4100 Sh3 Motor 070.2 Key Mlt Omc Ang Ip65

Schneider Electric
SKU:
SH30702P1BA4100
|
UPC:
3606481803306
$2,170.00
(No reviews yet) Write a Review
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
Lexium SH3 Servo motors are designed to fit Lexium 62 and Lexium 52 servo drives, part of PacDrive 3, an automation solution for motion centric machines. The servo motor features maximum mechanical speed of 8000RPM and keyed shaft end without holding brake. It is equipped with an absolute multi turn Hiperface (DSL 18bit, EKM36) encoder. It figures as single angular turntable connector (One motor cable connectivity) for connecting a hybrid cable (DSL cable with quick lock connector). It is a servo motor with a rated supply voltage of 115V to 480V, a continuous stall current of 17.6A and a continuous power of 4100W. Shaft end and casing are IP65 rated. The flange size is 70mm, it is fixed by 4x 5.5mm holes. The circle diameter of the mounting holes is 82mm. it weighs 2.8kg. SH3 servo motors with Lexium 62 multi axis servo drives meet the requirements of production and packaging machinery, material handling and assembly systems. Lexium SH3 servo motors are UL UR and conform to UL1004 as well as European directives CE and UKCA. This SH3 servo motor figuring One-Motor Cable connectivity is compatible with a Lexium 62 servo drive. All mounting positions are permitted (horizontal mounting (IMB5), vertical mounting (IMV1, IMV3) in accordance with IEC 60034-7. Lexium SH3 motors are prime solution to the need for dynamic performance, covering a continuous stall torque range (0.2 to 94.4Nm) for speeds up to 9000 rpm. Lexium 62 multi-axis servo system, making the PacDrive system one of the most flexible motion control solutions.
Additional Information
Mercury Free:
Yes
Motor Flange Size:
70 mm
Net Weight:
2.8 kg
Pvc Free:
Yes
Stator Resistance:
4.2 Ohm
Nominal Speed:
3000 rpm 230 V single phase || 6000 rpm 400 V three phase || 7200 rpm 480 V three phase
Number Of Mounting Holes:
4
Device Short Name:
SH3.....P
Product Or Component Type:
servo motor
Maximum Current Irms:
11.8 A
Mounting Support:
international standard flange
Nominal Torque:
2.1 N.m 230 V single phase || 1.8 N.m 400 V three phase || 1.8 N.m 480 V three phase
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Range Compatibility:
PacDrive 3
[Us] Rated Supply Voltage:
115...480 V
Speed Feedback Resolution:
262144 points/turn x 4096 turns
Continuous Stall Torque:
2.04 N.m 115...480 V three phase
Nominal Output Power:
610 W 230 V single phase || 1130 W 400 V three phase || 1130 W 480 V three phase
Maximum Mechanical Speed:
8000 rpm
China Rohs Regulation:
X
Continuous Stall Current:
2.9 A
Shaft Diameter:
11 mm
Circularity Profile:
N/A
Circle Diameter Of The Mounting Holes:
82 mm
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Ip Degree Of Protection:
motor IP65 EN/IEC 60034-5 || shaft bushing IP65 EN/IEC 60034-5
Torque Constant:
0.7 N.m/A 120 °C
Shaft End:
parallel key
Type Of Cooling:
natural convection
Continuous Power:
1130 W
Centring Collar Diameter:
60 mm
Peak Stall Torque:
7.6 N.m 115...480 V three phase
Key Width:
4 mm
Phase:
three phase
Stator Inductance:
21.3 mH
Rotor Inertia:
0.410 kg.cm²
Centring Collar Depth:
2.5 mm
Mounting Holes Diameter:
5.5 mm
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Shaft Length:
23 mm
Length:
187 mm
Sustainable Offer Status:
Green Premium product
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Encoder Type:
absolute multiturn Hiperface DSL
Maximum Radial Force Fr:
1050 N 1000 rpm
Back Emf Constant:
48 V/krpm 20 °C
Number Of Motor Poles:
3
Rohs Exemption Information:
Yes
Electrical Connection:
straight connector
Environmental Disclosure:
ENVPEP111049EN
Maximum Axial Force Fa:
160 N
Holding Brake:
without
Catalog:
View
