Schneider Electric

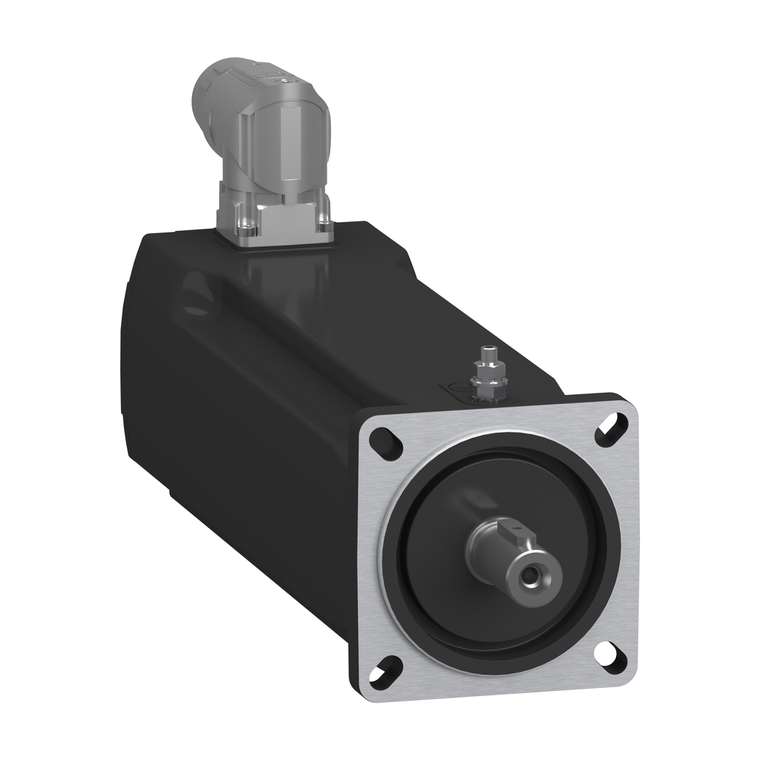

Schneider Electric SH30703P1BA4100 Sh3 Motor 070.3 Key Mlt Omc Ang Ip65

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric SH30703P1BA4100 Sh3 Motor 070.3 Key Mlt Omc Ang Ip65

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

SH30703P1BA4100

UPC:

3606481803627

MPN:

Condition:

New

Maximum Radial Force Fr:

1070 N 1000 rpm

Net Weight:

3.6 kg

Nominal Speed:

3000 rpm 230 V single phase || 6000 rpm 400 V three phase || 7200 rpm 480 V three phase

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Nominal Output Power:

830 W 230 V single phase || 1330 W 400 V three phase || 1330 W 480 V three phase

Maximum Current Irms:

17 A

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Holding Brake:

without

Encoder Type:

absolute multiturn Hiperface DSL

Continuous Stall Current:

4.1 A

China Rohs Regulation:

X

[Us] Rated Supply Voltage:

115...480 V

Device Short Name:

SH3.....P

Circle Diameter Of The Mounting Holes:

82 mm

Back Emf Constant:

49 V/krpm 20 °C

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Torque Constant:

0.72 N.m/A 120 °C

Sustainable Offer Status:

Green Premium product

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Circularity Profile:

N/A

Speed Feedback Resolution:

262144 points/turn x 4096 turns

Peak Stall Torque:

11.3 N.m 115...480 V three phase

Key Width:

5 mm

Stator Inductance:

14.6 mH

Rotor Inertia:

0.580 kg.cm²

Electrical Connection:

straight connector

Product Or Component Type:

servo motor

Pvc Free:

Yes

Motor Flange Size:

70 mm

Maximum Mechanical Speed:

8000 rpm

Mounting Holes Diameter:

5.5 mm

Maximum Axial Force Fa:

160 N

Shaft End:

parallel key

Rohs Exemption Information:

Yes

Continuous Stall Torque:

2.94 N.m 115...480 V three phase

Phase:

three phase

Number Of Motor Poles:

3

Centring Collar Depth:

2.5 mm

Mounting Support:

international standard flange

Shaft Diameter:

14 mm

Shaft Length:

30 mm

Length:

220 mm

Ip Degree Of Protection:

motor IP65 EN/IEC 60034-5 || shaft bushing IP65 EN/IEC 60034-5

Range Compatibility:

PacDrive 3

Environmental Disclosure:

ENVPEP111049EN

Type Of Cooling:

natural convection

Continuous Power:

1330 W

Centring Collar Diameter:

60 mm

Nominal Torque:

2.8 N.m 230 V single phase || 2.1 N.m 400 V three phase || 2.1 N.m 480 V three phase

Stator Resistance:

2.7 Ohm

Number Of Mounting Holes:

4

Mercury Free:

Yes
