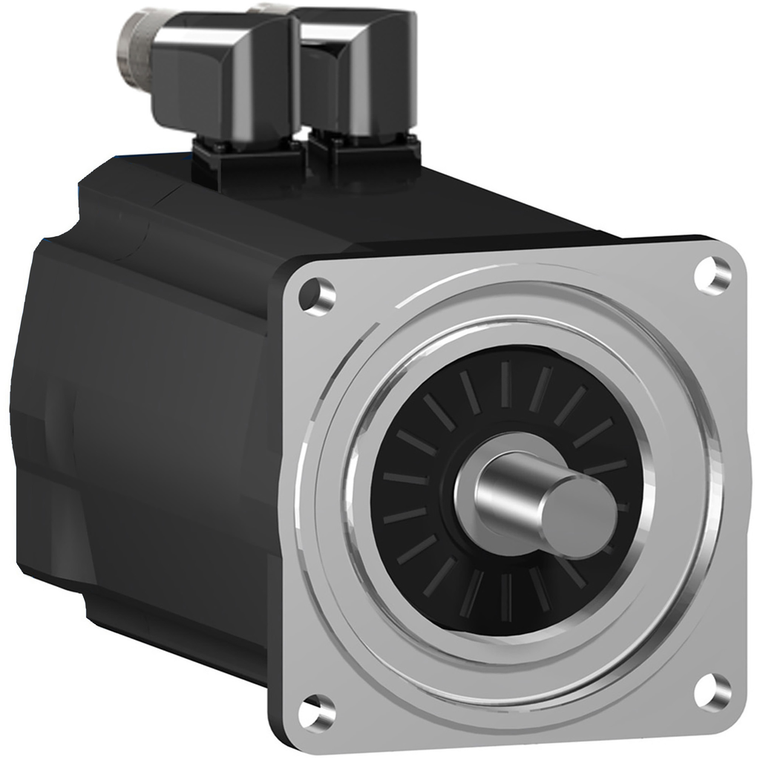

Schneider Electric SH31002P12F2100 servo motor SH3 100 5,8Nm,key,multi,brake,90°conn.IP65/IP65,6k RPM
SKU:
SH31002P12F2100
UPC:
MPN:
SH31002P12F2100
Condition:
New
Motor Flange Size:
100 mm
Rohs Exemption Information:
Yes
Warranty:
18 months
Rotor Inertia:
2.928 kg.cm²
Circularity Profile:
N/A
Pvc Free:
Yes
Nominal Output Power:
580 W 115 V single phase || 1090 W 230 V single phase || 1930 W 400 V three phase || 2210 W 480 V three phase
Mounting Holes Diameter:
9.0 mm
Shaft End:
parallel key
Continuous Stall Torque:
5.8 N.m 115...480 V three phase
Maximum Current Irms:
17.1 A
Electrical Connection:
rotatable right angled connector
Stator Resistance:
2.4 Ohm
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Holding Torque:
9 N.m
[Us] Rated Supply Voltage:
115...480 V
Weight:
6.3 kg
Shaft Diameter:
19 mm
Number Of Motor Poles:
4
Nominal Torque:
5.5 N.m 115 V single phase || 5.2 N.m 230 V single phase || 4.6 N.m 400 V three phase || 4.4 N.m 480 V three phase
Phase:
three phase
Ip Degree Of Protection:
IP65 motor: conforming to EN/IEC 60034-5 || IP65 shaft bushing: conforming to EN/IEC 60034-5
Maximum Mechanical Speed:
6000 rpm
Type Of Cooling:
natural convection
Shaft Length:
40 mm
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Continuous Stall Current:
4.8 A
Centring Collar Depth:
3.5 mm
Product Or Component Type:
servo motor
Back Emf Constant:
77 V/krpm 20°C
Key Width:
6 mm
China Rohs Regulation:
X
Number Of Mounting Holes:
4
Range Compatibility:
PacDrive 3
Centring Collar Diameter:
95 mm
Maximum Axial Force Fa:
160 N
Mounting Support:
international standard flange
Continuous Power:
1900 W
Encoder Type:
absolute multiturn SinCos Hiperface
Holding Brake:
with
Circle Diameter Of The Mounting Holes:
115 mm
Country of Origin:
United States
Net Weight:
6.3 kg
Sustainable Offer Status:
Green Premium product
Stator Inductance:
19.5 mH
Device Short Name:
SH3.....P
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
This product is part of the Lexium 52 & Motors range, an offer of servo motors for PacDrive 3. The 4-pole servo motor features maximum mechanical speed of 6000RPM and smooth shaft end with...
