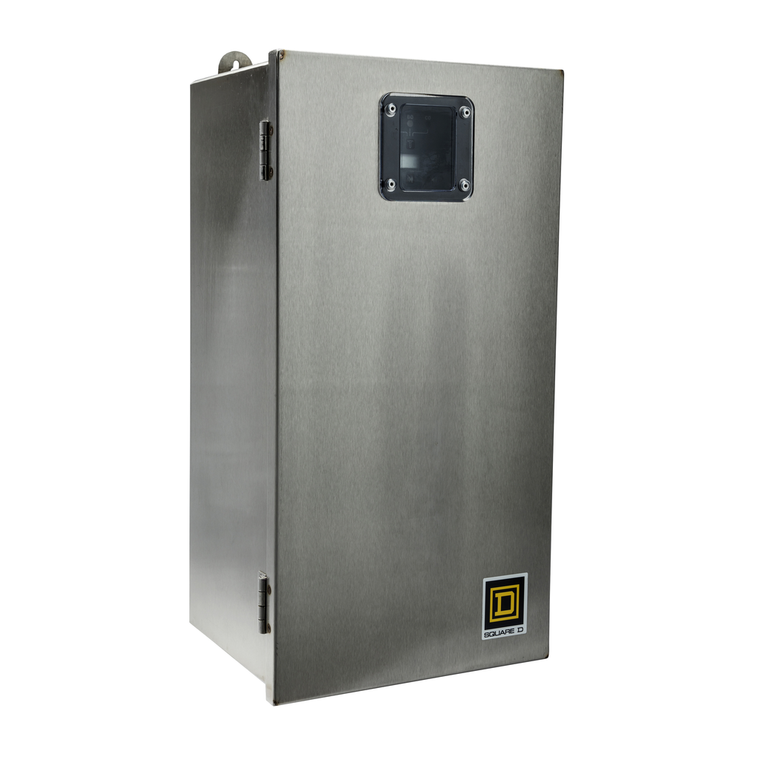

Schneider Electric SSP03EMA12S Surge protection device, Surgelogic, 120kA, 240/120 VAC delta, 3 phase, 4 wire, NEMA 4X

Schneider Electric SSP03EMA12S Surge protection device, Surgelogic, 120kA, 240/120 VAC delta, 3 phase, 4 wire, NEMA 4X

Schneider Electric
SKU:
SSP03EMA12S
$4,998.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
Surgelogic™ Type EMA systems are external surgical protection devices with a focus on individual phase modules. With a surge current rating of 120,000 Amps, enhanced EMI/RFI filtering of -54 dB at 100 kHz is possible to increase performance at distribution and branch panel applications. Being modular in design, this unit is able to achieve superior surge suppression at every level of the electrical distribution system. This unit provides surge suppression from service entrance panels to point-of-use equipment. This product is UL and CSA certified.
Additional Information
Length:
483 mm
Provided Equipment:
alarm enable/disable switch || surge counter || dry contacts
[Uc] Maximum Continuous Operating Voltage:
150 V
Device Mounting:
surface
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Product Or Component Type:
surge protection device
Eu Rohs Directive:
Compliant with Exemptions
Device Short Name:
EMA
Mercury Free:
Yes
Depth:
238.8 mm
Rohs Exemption Information:
Yes
[Ue] Rated Operational Voltage:
240/120 V delta AC
Standards:
CSA C22.2 No 8 || UL 1449:ed. 4 || UL 1283:ed. 5
Wiring Configuration:
4-wire
Phase:
3 phase
Cable Length:
483 mm
Nema Degree Of Protection:
NEMA 4X
Surge Current:
120 kA
Short-Circuit Protection:
200 kA
Range Of Product:
Surgelogic
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Enclosure Material:
Stainless Steel
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Ambient Air Temperature For Operation:
65-65°C
Country of Origin:
United States
Nominal Discharge Current:
20 kA
Connections - Terminals:
lugs AWG 10...AWG 2 copper 4 N.m
Local Signaling:
status LED green per phase normal operation || status LED red per phase fault
