Schneider Electric VC3GUN TeSys Vario enclosed, emergency switch disconnector, 45A, UL/CSA

Schneider Electric VC3GUN TeSys Vario enclosed, emergency switch disconnector, 45A, UL/CSA

Schneider Electric
SKU:
VC3GUN
$345.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

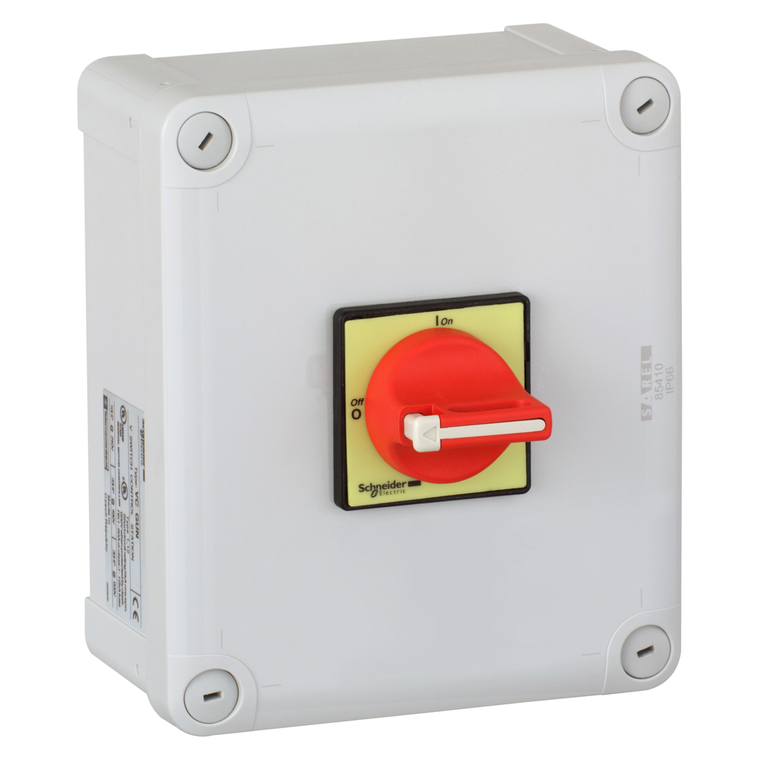

VC3GUN is a 3-pole TeSys Vario enclosed switch-disconnector from Schneider Electric for emergency stop switching in motor applications 30HP@600V. It provides an IP65 / NEMA type 12 enclosure, V3 Vario switch disconnector and red & yellow operator. VC3GUN is a 3-pole TeSys Vario enclosed switch-disconnector from Schneider Electric for main and emergency stop switching in motor applications 30HP@600V. It includes a V3 Vario switch disconnector rated 45A conforming UL/CSA. It provides an IP65 / NEMA type 12 enclosure with a red & yellow operator. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC) and Green Premium compliant (RoHs/Reach). Enclosed switch disconnector including a 3-pole switch-disconnector Vario V3 model. Conforming to IEC (IEC 60947-4-1, IEC 60204) and UL/CSA (UL 508 and CSA 22.2 n° 14). NEMA type 12 enclosure rating, IP65 protection degree, sealable. Operating red handle for emergency stop, padlockable. Connections directly on the screw clamp terminals of the switch. Possible attachment of 2 add-on poles to the switch body , main (VZ3), neutral (VZ12), earthing (VZ15), auxiliary (VZ7, VZ20).
Additional Information
Toxic Heavy Metal Free:
Yes
Product Name:
TeSys VARIO
Connections - Terminals:
screw clamp terminals 25-25 mm² solid - with cable end || screw clamp terminals 16-16 mm² flexible
Control Type:
rotary handle
Ambient Air Temperature For Operation:
-20-50°C
Handle Colour:
red
Product Or Component Type:
enclosed emergency stop switch disconnector
Tightening Torque:
4-4 N.m screw clamp terminals
Electrical Durability:
30000 cycles AC-21 || 30000 cycles DC-1...5
Nema Degree Of Protection:
NEMA 12
[Ue] Rated Operational Voltage:
690 V AC 50/60 Hz
[Icm] Rated Short-Circuit Making Capacity:
2.1 kA 400 V at Ipeak
Mechanical Durability:
30000 cycles
Making Capacity:
630 A 400 V AC-21A || 630 A 400 V AC-22A || 630 A 400 V AC-23A
Intermittent Duty Class:
30
Rated Power In Hp:
10 hp 240 V, UL || 20 hp 480 V, UL || 30 hp 600 V, UL
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Depth:
132 mm
Performance Level:
high performance
Rated Operational Power In W:
22 kW 400 V AC-23) || 18.5 kW 400 V AC-3)
[Icw] Rated Short-Time Withstand Current:
756 A 400 V 1 s
Mechanical Robustness:
vibrations 10...150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27
Marking:
0 - 1
Handle Front Plate Colour:
yellow
Range:
TeSys
[Uimp] Rated Impulse Withstand Voltage:
8 kV
Protective Treatment:
TC
Eu Rohs Directive:
Compliant with Exemptions
Mercury Free:
Yes
Sustainable Offer Status:
Green Premium product
[Ie] Rated Operational Current:
41.5 A AC-23A)400 V
Weight:
0.93 kg
Device Short Name:
VC-GUN
Ip Degree Of Protection:
IP65 conforming to IEC 60529
Poles Description:
3P
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Standards:
IEC 60947-4-1 || CSA C22.2 No 14 || UL 508 || IEC 60204
[Ithe] Conventional Enclosed Thermal Current:
50 A
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Fire Resistance:
960°C IEC 60595-2-1
Environmental Characteristic:
standard environment
Rotary Handle Padlocking:
1 to 3 padlocks 4-8 mm
Suitability For Isolation:
yes
Environmental Disclosure:
ENVPEP2211019
Warranty:
18 months
