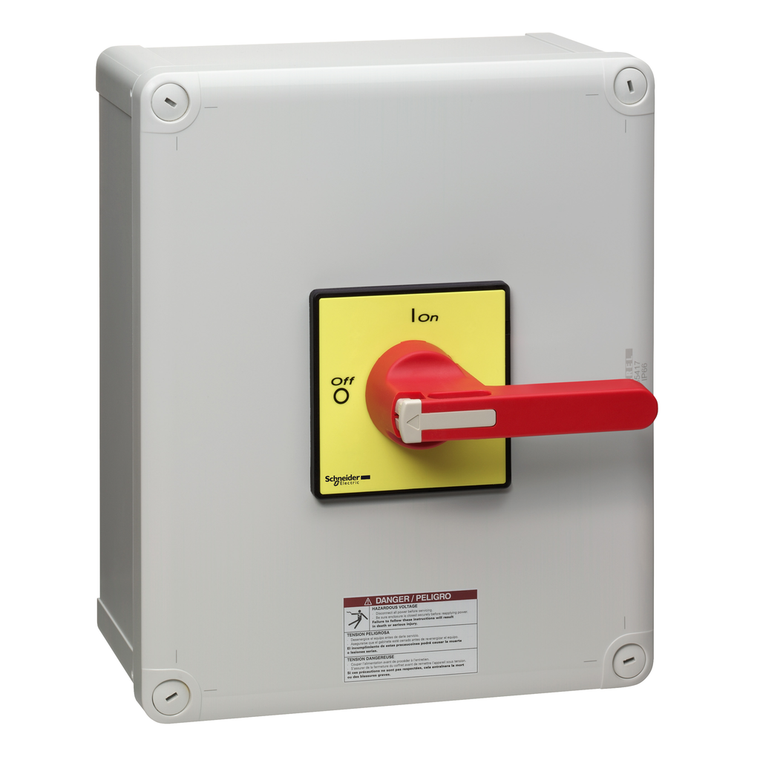

Schneider Electric VC6GUN TeSys Vario enclosed, emergency switch disconnector, 115A, UL/CSA, long handle

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric VC6GUN TeSys Vario enclosed, emergency switch disconnector, 115A, UL/CSA, long handle

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

VC6GUN

UPC:

MPN:

VC6GUN

Condition:

New

Rated Conditional Short-Circuit Current:

10 kA 400 V 200 A aM || 10 kA 400 V 200 A gG

Suitability For Isolation:

yes

Tightening Torque:

22.6-22.6 N.m screw clamp terminals

Nema Degree Of Protection:

NEMA 12

[Icw] Rated Short-Time Withstand Current:

2100 A 400 V 1 s

Product Name:

TeSys VARIO

Mechanical Robustness:

vibrations 10...150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27

Rohs Exemption Information:

Yes

[Icm] Rated Short-Circuit Making Capacity:

2.8 kA 400 V at Ipeak

Width:

241 mm

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Product Or Component Type:

enclosed emergency stop switch disconnector

Electrical Durability:

30000 cycles AC-21 || 30000 cycles DC-1...5

Depth:

191 mm

Range:

TeSys

Rated Power In Hp:

50 hp 480 V, UL || 30 hp 240 V, UL || 60 hp 600 V, UL

[Ue] Rated Operational Voltage:

690 V AC 50/60 Hz

Circularity Profile:

N/A

Sustainable Offer Status:

Green Premium product

Net Weight:

2.19 kg

Weight:

2.19 kg

[Uimp] Rated Impulse Withstand Voltage:

8 kV

Control Type:

rotary handle

Breaking Capacity:

1400 A 400 V AC-21A) || 1400 A 400 V AC-22A) || 1400 A 400 V AC-23A)

Ambient Air Temperature For Operation:

-20-50°C

Type Of Operator:

long handle

Fire Resistance:

960°C IEC 60595-2-1

Ip Degree Of Protection:

IP65 conforming to IEC 60529

Country of Origin:

Czechia

Rotary Handle Padlocking:

1 to 3 padlocks 4-8 mm

Environmental Disclosure:

ENVPEP2211019

Handle Colour:

red

Base Dimension:

90 x 90 mm

Standards:

IEC 60204 || CSA C22.2 No 14 || IEC 60947-4-1 || UL 508

[Ithe] Conventional Enclosed Thermal Current:

140 A

Handle Front Plate Colour:

yellow

Mechanical Durability:

30000 cycles

Performance Level:

high performance

Marking:

0 - 1

Connections - Terminals:

screw clamp terminals 95-95 mm² solid - with cable end || screw clamp terminals 70-70 mm² flexible

[Ie] Rated Operational Current:

83 A AC-23A)400 V

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Warranty:

18 months

Device Short Name:

VC-GUN

Rated Operational Power In W:

45 kW 400 V AC-23) || 37 kW 400 V AC-3)

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Eu Rohs Directive:

Compliant with Exemptions

Toxic Heavy Metal Free:

Yes
