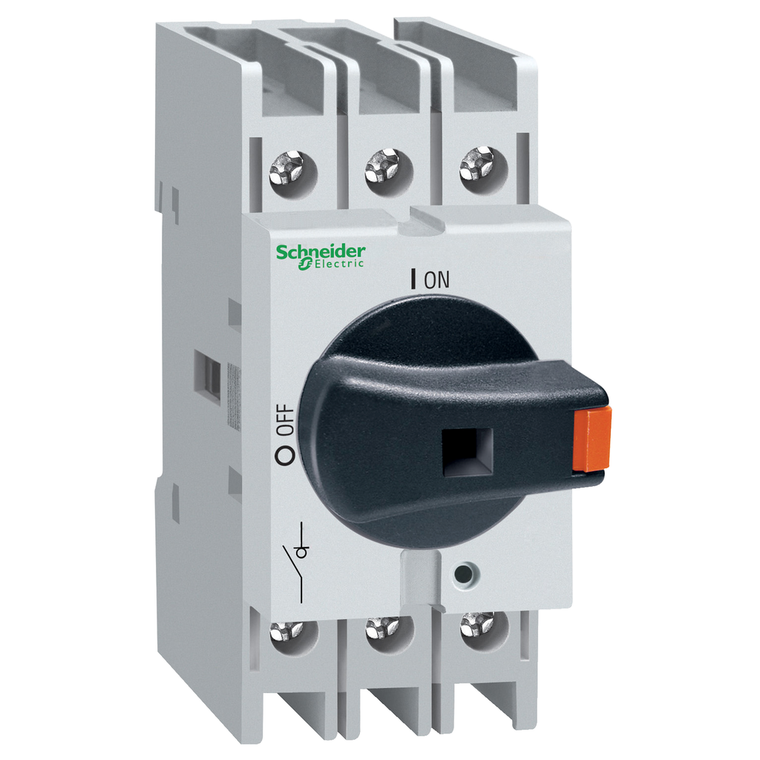

Schneider Electric VLS3P032R1 Disconnect switch, TeSys VLS, body switch, 32A, 20HP at 480VAC, UL508, three phase, 5kA SCCR, size 1, DIN rail mount

Schneider Electric VLS3P032R1 Disconnect switch, TeSys VLS, body switch, 32A, 20HP at 480VAC, UL508, three phase, 5kA SCCR, size 1, DIN rail mount

Schneider Electric
SKU:
VLS3P032R1
$40.99
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This 32A disconnect switch has 3 normally open poles and mounts on DIN rail. Per UL and CSA this this disconnect switch has a 2 HP rating at 120 VAC and a 5 HP at 240 VAC single phase. Per UL and CSA this disconnect switch has a 10 HP rating at 200 to 208 VAC and 240 VAC, a 20 HP rating at 480 VAC and a 20 HP rating at 600 VAC three phase. Per UL508A this this disconnect switch has up to a 5 kA at 600 V short circuit current rating (SCCR) with a 30A Type RK5 fuse maximum. Per IEC requirements, this disconnect switch has a 15 kW rating at 400 V, a 18.5 kW rating at 500 V and a 22 kW rating at 690V three phase. The screw clamp terminals will accept 10 mm solid or 16 mm stranded wire. The clamps will also accept solid or stranded wire from 18 AWG to 6 AWG. This disconnect switch is 3.07 inches tall, 1.42 inches wide and 2.95 inches deep. The switch weighs 0.30 lbs. There are many handles and accessories available this TeSys VLS disconnect switch. This TeSys VLS disconnect switch is cULus Listed and meets IEC 60947-3 requirements.
Additional Information
Connections - Terminals:
power circuit screw clamp terminals 10-10 mm² solid || power circuit screw clamp terminals 16-16 mm² flexible - without cable end
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
Toxic Heavy Metal Free:
Yes
Product Or Component Type:
switch body
Fire Resistance:
960°C IEC 60695-2-11
Rated Operational Power In W:
15 kW 400 V AC-23A) || 18.5 kW 500 V AC-23A) || 22 kW 690 V AC-23A)
Handle Colour:
black
Depth:
78 mm
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Country of Origin:
Italy
Marking:
0 - 1
Ip Degree Of Protection:
IP20 conforming to IEC 60529
Mercury Free:
Yes
[Ith] Conventional Free Air Thermal Current:
32 A (at 55°C)
Rated Conditional Short-Circuit Current:
50 kA 400 V 32 A gG
Control Type:
rotary handle
Product Certifications:
cULus || GL
Electrical Durability:
100000 cycles AC-21A
Reach Free Of Svhc:
Yes
Rotary Handle Mounting Style:
direct
Color:
Gray
Range:
TeSys
Performance Level:
high performance
[Icm] Rated Short-Circuit Making Capacity:
1128 A 690 V
Intermittent Duty Class:
class 120 - 60 %
Suitability For Isolation:
yes
Net Weight:
0.135 kg
Network Type:
AC
Standards:
UL 508 || CSA C22.2 No 14 || IEC 60947-3
Device Short Name:
VLS3P
Width:
36 mm
Handle Front Plate Colour:
grey
Device Composition:
handle || switch
Ambient Air Temperature For Operation:
-25-55°C
[Ie] Rated Operational Current:
32 A Ue: 600 V UL 508 || 32 A AC-21A Ue: 400 V || 32 A AC-21A Ue: 500 V || 32 A AC-21A Ue: 690 V || 32 A AC-22A Ue: 400 V || 32 A AC-22A Ue: 500 V || 32 A AC-22A Ue: 690 V || 32 A AC-23A Ue: 400 V || 25 A AC-23A Ue: 500 V || 25 A AC-23A Ue: 690 V
Mounting Support:
back DIN rail
Poles Description:
3P
Rohs Exemption Information:
Yes
Product Name:
TeSys VARIO LS
Breaking Capacity:
48 A 690 V AC-21A) || 96 A 690 V AC-22A) || 256 A 690 V AC-23A)
Compatibility Code:
VLS
Eu Rohs Directive:
Compliant
Weight:
0.135 kg
Tightening Torque:
power circuit 1.8-2 N.m screw clamp terminals
Mechanical Durability:
100000 cycles
[Icw] Rated Short-Time Withstand Current:
800 A 690 V 1 s
Network Frequency:
50/60 Hz
Making Capacity:
48 A 690 V AC-21A || 96 A 690 V AC-22A || 320 A 690 V AC-23A
