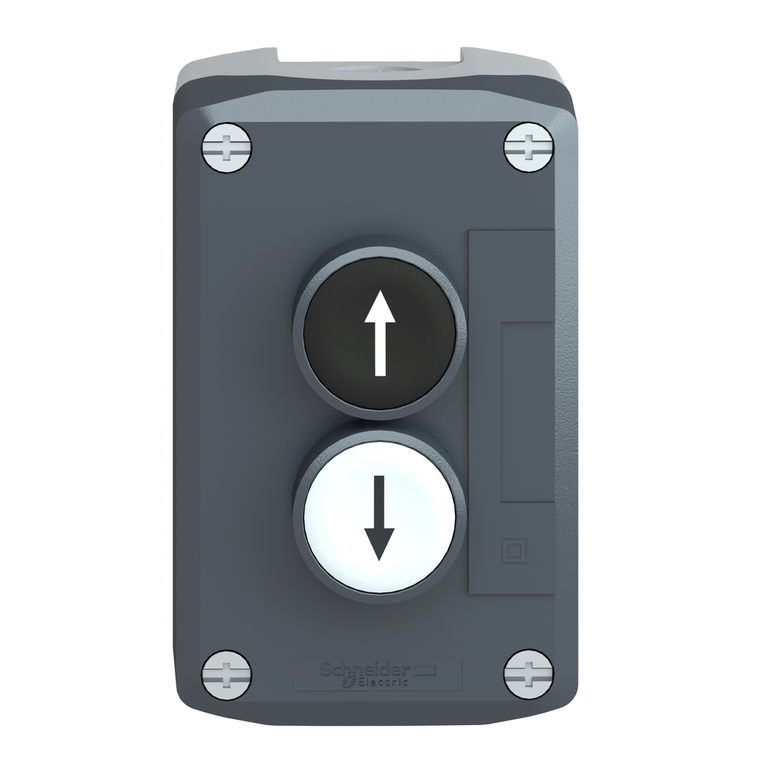

Schneider Electric XALD222H7 Control Station Xald Two Functions 2 No

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric XALD222H7 Control Station Xald Two Functions 2 No

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XALD222H7

UPC:

3389119414227

MPN:

Condition:

New

Product Destination:

for XB5 Ø 22 mm control and signalling units

Reach Free Of Svhc:

Yes

Shape Of Screw Head:

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Sustainable Offer Status:

Green Premium product

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 || IP69 || IP69K

Warranty:

18 months

Range Of Product:

Harmony XALD

Control Station Composition:

1 flush push-button, white 1 NO, black up arrow || 1 flush push-button, black 1 NO, white down arrow

Vibration Resistance:

5 gn 12-500 Hz)IEC 60068-2-6

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Colour Of Marking:

black marking when white caps || white marking when green, red or black caps

Colour Of Cover:

dark grey RAL 7016)

[Ui] Rated Insulation Voltage:

600 V 3)EN/IEC 60947-1

[Ith] Conventional Free Air Thermal Current:

10 A EN/IEC 60947-5-1

Environmental Disclosure:

ENVPEP1806010EN

Standards:

JIS C8201-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || EN/IEC 60947-5-5 || CSA C22.2 No 14 || UL 508 || EN/IEC 60947-5-1 || JIS C8201-1

Colour Of Base Of Enclosure:

light grey RAL 7035)

Ambient Air Temperature For Storage:

-40-70 °C

Product Or Component Type:

complete control station

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Protective Treatment:

TH

Mercury Free:

Yes

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Electrical Durability:

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles

Operating Travel:

2.6 mm NO changing electrical state) || 4.3 mm total travel)

Electrical Shock Protection Class:

class II IEC 60536

[Uimp] Rated Impulse Withstand Voltage:

6 kV EN/IEC 60947-1

Ambient Air Temperature For Operation:

-40-70 °C

Operators Description:

white ''up arrow'' 1 NO - black ''down arrow'' 1 NO

Tightening Torque:

0.8-1.2 N.m EN/IEC 60947-1

Net Weight:

0.233 kg

Control Station Application:

two functions

Positive Opening:

without

Ik Degree Of Protection:

IK03 EN 50102

Operating Force:

3.8 N NO changing electrical state

Circularity Profile:

ENVEOLI1806010EN

Rohs Exemption Information:

Yes

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Mechanical Durability:

5000000 cycles

Contact Operation:

slow-break

[Ie] Rated Operational Current:

6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN

Electrical Reliability:

λ < 10exp(-6) 5 V 1 mA EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA EN/IEC 60947-5-4

Device Short Name:

XALD

Operator Profile:

2 flush push-buttons

Marking Location:

marking on push-button

Material:

polycarbonate

Short-Circuit Protection:

10 A cartridge fuse gG EN/IEC 60947-5-1

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1

Toxic Heavy Metal Free:

Yes

Product Certifications:

UL Listed || CSA

China Rohs Regulation:

X

Cable Entry:

2 knock-outs for cable entry 14-14 mm || 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm

Contacts Material:

silver alloy (Ag/Ni)
