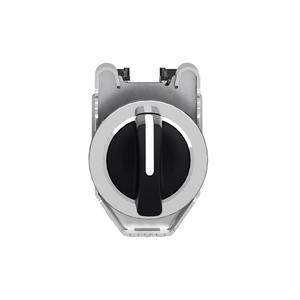

Schneider Electric XB4FD53 Flush Ssw 3Pos 2No
Schneider Electric
$75.30
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This flush mounted selector switch is a part of the Harmony XB4 metallic range and is a complete product. It has a mounting diameter of 30.5 mm. Customized marking option through web customization tool is available in Schneider Electric website. The flush mount design of this selector switch addresses the market demands for ergonomic and aesthetics. It has a black standard handle with 3 positions ± 45 degree spring return to center. The contact type is 2NO slow break and the connection terminal is screw clamp. The shape of the head is round. The bezel is chromium plated and the fixing collar is zamak. The weight of this selector switch is 95 grams, height is 47 mm, and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 12, 13, 4, and 4X, IK06, protection against solid objects, dust, water, and high impact is achieved. It is certified with EN/IEC, CE marking, UL, CSA, CCC, EAC, JIS, and marine approvals. To name a few, flush mounted metal circular blanking plug, metal ring, spacer, protective washer, and flush mounting kit are some of the dedicated accessories to be ordered separately, available to facilitate the installation. The packaging includes 1 unit of this selector switch. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring. It is eco-friendly and complies with directives such as RoHS, WEEE, etc. related to environmental protection.
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
- Ambient Air Temperature For Storage:
- -40-70 °C
- Mechanical Durability:
- 1000000 cycles
- Device Mounting:
- built-in
- Warranty:
- 18 months
- Shape Of Signaling Unit Head:
- round
- Fixing Mode:
- by screws
- Electrical Reliability:
- λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
- Head Type:
- built-in-flush
- Fixing Center:
- 40 x 50 mm 1...6 mm thick panel)
- Protective Treatment:
- TH
- Depth:
- 70 mm
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- Tightening Torque:
- 0.8-1.2 N.m IEC 60947-1
- Height:
- 47 mm
- Mounting Diameter:
- 30.5 mm
- Operator Position Information:
- 3 positions +/- 45°
- Shape Of Screw Head:
- cross Philips no 1 || cross pozidriv No 1 || slotted flat à 4 mm || slotted flat à 5.5 mm
- Width:
- 36.6 mm
- Sustainable Offer Status:
- Green Premium product
- Device Presentation:
- complete product
- Ambient Air Temperature For Operation:
- -40-70 °C
- Short-Circuit Protection:
- 10 A cartridge fuse gG IEC 60947-5-1
- [Ui] Rated Insulation Voltage:
- 600 V 3)IEC 60947-1
- Positive Opening:
- without
- Operator Profile:
- black standard handle
- Contacts Type And Composition:
- 2 NO
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Contacts Material:
- silver alloy (Ag/Ni)
- Range Of Product:
- Harmony XB4
- Connections - Terminals:
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
- Rohs Exemption Information:
- Yes
- [Ith] Conventional Free Air Thermal Current:
- 10 A IEC 60947-5-1
- Bezel Material:
- chromium plated metal
- Mercury Free:
- Yes
- Fixing Collar Material:
- zamak
- Vibration Resistance:
- 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
- Type Of Operator:
- to centre spring return
- Electrical Durability:
- 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2
- [Ie] Rated Operational Current:
- 3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
- Product Certifications:
- UL Listed || CSA || CCC || EAC
- Circularity Profile:
- ENVEOLI1808008EN
- Torque Value:
- 0.14 N.m NO changing electrical state
- Toxic Heavy Metal Free:
- Yes
- Device Short Name:
- XB4F
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC 60947-1
- Contact Operation:
- slow-break
- Overvoltage Category:
- class I IEC 60536
- China Rohs Regulation:
- X
- Net Weight:
- 0.105 kg
- Ik Degree Of Protection:
- IK04 conforming to IEC 50102
- Product Or Component Type:
- selector switch
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Sale Per Indivisible Quantity:
- 1
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Environmental Disclosure:
- ENVPEP1808008EN
- Terminals Description Iso N°1:
- (13-14)NO || (23-24)NO
- Standards:
- CSA C22.2 No 14 || IEC 60947-5-1 || IEC 60947-5-4 || UL 508 || IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1
- Contacts Usage:
- standard contacts
- Reach Free Of Svhc:
- Yes
