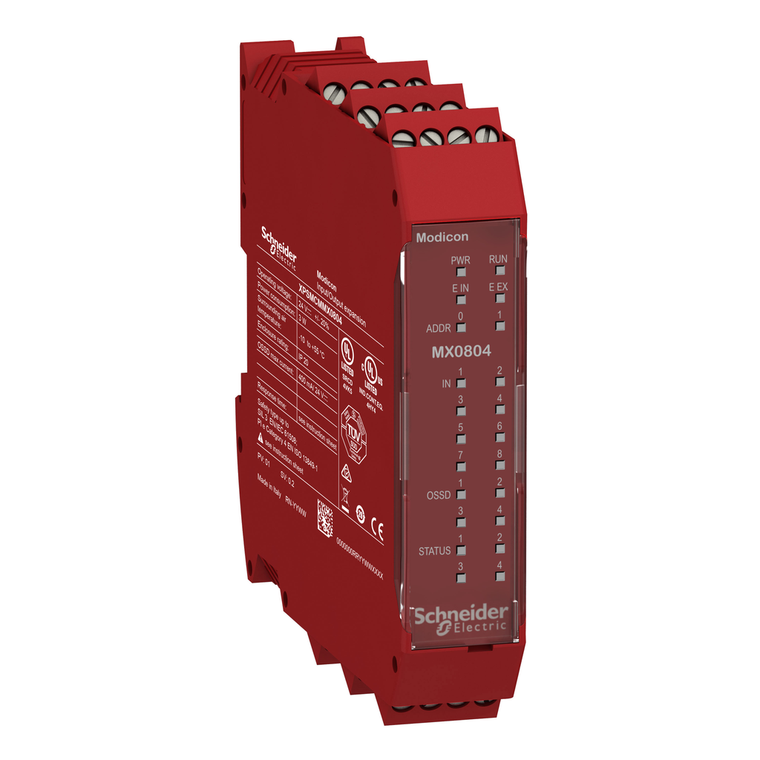

Schneider Electric XPSMCMMX0804 expansion module, Modicon MCM, 8 inputs 4 outputs, screw

(No reviews yet) Write a Review
SKU:
XPSMCMMX0804
MPN:
XPSMCMMX0804
Condition:
New
Device Short Name:
XPSMCM
Electromagnetic Compatibility:
electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2 || electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2 || susceptibility to electromagnetic fields - test lev
Standards:
IEC 61800-5-1 || IEC 61508 || ISO 13849-1 || IEC 62061
Discrete Output Voltage:
24 V DC
Depth:
22.5 mm
Country of Origin:
Italy
Ip Degree Of Protection:
IP20 enclosure)
Discrete Input Voltage:
24 V DC
China Rohs Regulation:
X
[Us] Rated Supply Voltage:
24 V - 20...20 % DC
Cable Cross Section:
0.2-1.5 mm² - AWG 24...AWG 16 flexible without cable end || 0.2-2.5 mm² - AWG 24...AWG 14 flexible without cable end || 0.25-1 mm² - AWG 23...AWG 18 flexible with cable end, without bezel || 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end,
Width:
114.5 mm
Ambient Air Temperature For Operation:
-10-55°C
Range Of Product:
Preventa Safety automation
Discrete Input Type:
isolated
Service Life:
20 year(s)
Overvoltage Category:
II
Discrete Output Type:
PNP
Number Of Terminal Blocks:
6
Mounting Support:
omega 35 mm DIN rail EN 50022
Quality Labels:
CE
Number Of Inputs:
8 digital || 4 digital external device monitoring
[Uimp] Rated Impulse Withstand Voltage:
4 kV IEC 61800-5-1
Power Dissipation In W:
3 W
Rohs Exemption Information:
Yes
Number Of Outputs:
4 test line control || 4 safety outputs OSSD contactor/drive connection || 4 configurable diagnostic connection
Product Certifications:
cULus || TÃœV || RCM
Integrated Connection Type:
backplane expansion bus
Local Signaling:
1 LED green PWR power ON || 1 LED green RUN RUN (status) || 1 LED red E IN internal error || 1 LED red E EX external error || 2 LEDs orange ADDR node address || 8 LEDs yellow IN input status || 4 LEDs green/red OUT output status || 4 LEDs yellow STAT
Vibration Resistance:
+/-0.35 mm 10-55 Hz)IEC 61496-1
Product Or Component Type:
safe mixed I/O expansion module
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Electrical Connection:
screw terminal
Power Consumption In W:
3 W
Relative Humidity:
10-95 %
Output Load:
60 Ohm
Net Weight:
0.25 kg
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Connections - Terminals:
2 captive screw clamp terminals, removable terminal block || 1 captive screw clamp terminals, removable terminal block
Insulation:
250 V AC between power supply and housing IEC 61800-5-1
Shock Resistance:
10 gn 16 ms) 1000 shocks on each axis IEC 61496-1
Ambient Air Temperature For Storage:
-20-85°C
Mercury Free:
Yes
Discrete Output Current:
400 mA || 100 mA
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Reach Free Of Svhc:
Yes
Safety Level:
can reach category 4 ISO 13849-1 || can reach PL = e ISO 13849-1 || can reach SIL 3 IEC 61508 || SILCL 3 IEC 62061
Weight:
0.25 kg
$520.26

Description

This Modicon MCM safe mixed I/O expansion module has 8 digital inputs, 2 start/restart interlock inputs, 4 single channel OSSD (400 mA output current), 4 test outputs, 2 status outputs and is fitted with captive screw clamp terminals. It is designed to monitor remotely your safe I/O. It is furnished with screw clamp terminals, removable terminal block for electrical connection. It is an IP20 rated product. This safe mixed I/O module figures configurable filters and delays for each single input, configurable output activation and de-activation delays, independent control of pairs of outputs, and configurable diagnostic output signals. This module figures LEDs on its front face, displaying the status (power supply, run, internal or external errors, input and output status). This safe I/O module is connected to the safety controller via the backplane expansion connector. It weighs 0.25kg. Its dimension are 22.5mm (Depth), 99mm (Height) and 114.5mm (Width). Its housing is red. It is powered with 24 VDC. It is ideal for monitoring safety functions such as emergency stop, guard monitoring, perimeter guarding, position monitoring, speed monitoring and enabling movement. This safe I/O module is certified by RCM, CULus and TÃœV. It can reach such safety levels as category 4 conforming to EN/ISO 13849-1, PLe conforming to EN/ISO 13849-1, Type 4 conforming to EN/IEC 61496-1, and SILCL3 conforming to IEC 62061. This safe I/O module can only be configured with XPSMCMC10804 or XPSMCMC10804G safety controlles CPU. Compatible accessories for Modicon MCM module are a memory card and the backplane connector. The module instals on Omega 35mm DIN rail conforming to EN 50022. The Modicon MCM modular safety controller system provide flexibility and scalability from 8 inputs, 2 dual/4 single channel outputs up to 128 inputs, 16 dual/32 single channel outputs, up to 32 or 48 diagnostic status outputs. Modicon MCM modular safety controller system are designed to monitor multiple safety functions on and around a machine to minimise the risk of people accessing the dangerous moving parts of the machine.
