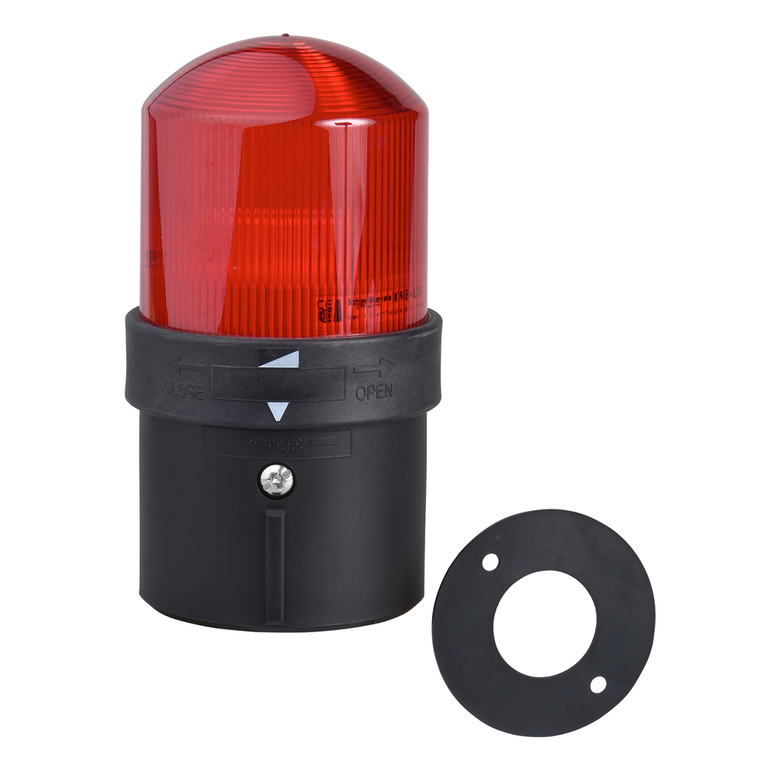

Schneider Electric XVBL0G4 Illuminated Beacon Red Steady Light 120

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric XVBL0G4 Illuminated Beacon Red Steady Light 120

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XVBL0G4

UPC:

3.38911E+12

MPN:

Condition:

New

Sustainable Offer Status:

Green Premium product

Electrical Shock Protection Class:

class I on support tube IEC 61140 || class II on base unit IEC 61140

Standards:

IEC 60947-5-1

Ip Degree Of Protection:

IP65 on fixing base XVBZ0. IEC 60529 || IP66 on base unit IEC 60529

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Component Name:

XVBL

Nominal Voltage Limit:

0.85...1.1 Un IEC 60947-5-1

Cad Overall Width:

70 mm

Warranty:

18 months

Pollution Degree:

2

Nema Degree Of Protection:

Type 4X UL indoor)

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Product Certifications:

CCC || EAC || CSA C22-2 No 14 || UL 508

Material:

glass reinforced polyamide: base unit || polycarbonate: illuminated unit

Product Or Component Type:

complete beacon

[Us] Rated Supply Voltage:

120 V AC

Terminals Description Iso N°1:

(GND)GROUND || (COM-1)PW

Mounting Diameter:

70 mm

Beacon Or Indicator Bank Unit Type:

base unit direct or tube fixing || illuminated unit

China Rohs Regulation:

X

[Uimp] Rated Impulse Withstand Voltage:

4 kV IEC 60947-1

Environmental Disclosure:

ENVPEP070907EN

Rohs Exemption Information:

Yes

Circularity Profile:

N/A

Cad Overall Depth:

70 mm

Cad Overall Height:

139 mm

Mercury Free:

Yes

Ambient Air Temperature For Storage:

-40-70 °C

Bulb Type:

protected LED

Light Source:

integral LED, red

Range Of Product:

Harmony XVB Universal

Net Weight:

0.27 kg

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Current Consumption:

< 17 mA AC

[Ui] Rated Insulation Voltage:

250 V IEC 60947-1

Protective Treatment:

TC

Connections - Terminals:

screw clamp terminals, <= 1 x 1.5 mm² with cable end

Signalling Type:

steady

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
