Schneider Electric XVBL4M8 Illuminated Beacon Yellow Flashing Light
Schneider Electric
$194.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric XVBL4M8 Illuminated Beacon Yellow Flashing Light

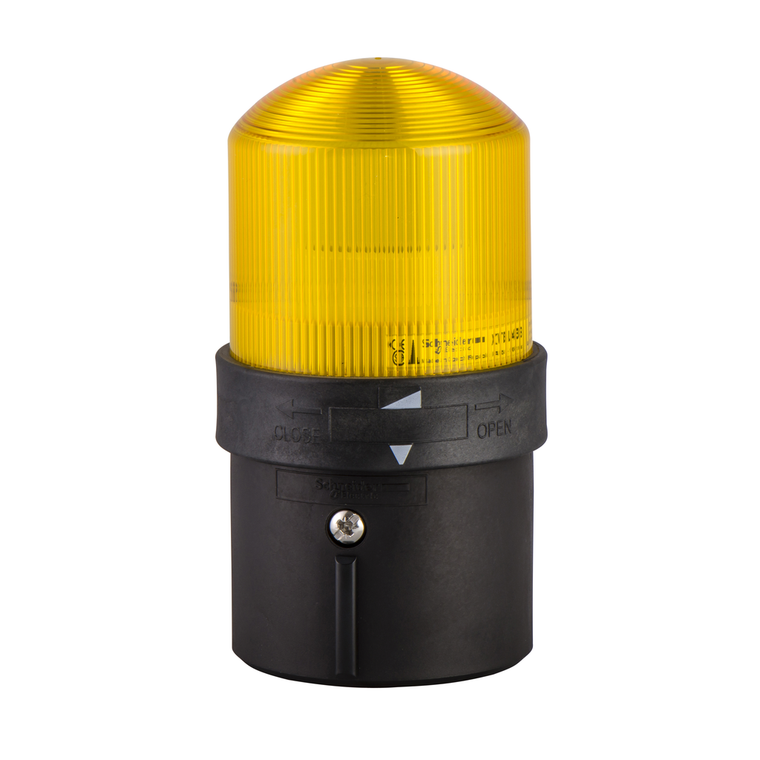

This illuminated complete beacon is designed as lighting accessory for tower light. Its integral LED offers a flashing light pattern, allowing it to clearly display the status of your machines. In applications such as automotive, machine tool, material handling, packaging, assembly stations, conveyors. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. It makes it ideal for operation in harsh environments.
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Signalling Type:
- flashing
- Net Weight:
- 0.28 kg
- Ip Degree Of Protection:
- IP65 on fixing base XVBZ0. IEC 60529 || IP66 on base unit IEC 60529
- Mercury Free:
- Yes
- China Rohs Regulation:
- X
- Rohs Exemption Information:
- Yes
- Mounting Diameter:
- 70 mm
- Product Certifications:
- CCC || EAC || CSA C22-2 No 14 || UL 508
- Component Name:
- XVBL
- Ambient Air Temperature For Storage:
- -40-70 °C
- Environmental Disclosure:
- ENVPEP070907EN
- Light Source:
- bulb not included, yellow
- Range Of Product:
- Harmony XVB Universal
- Product Or Component Type:
- complete beacon
- Warranty:
- 18 months
- Maximum Power Dissipation In W:
- 7 W
- [Ui] Rated Insulation Voltage:
- 250 V IEC 60947-1
- Electrical Shock Protection Class:
- class I on support tube IEC 61140 || class II on base unit IEC 61140
- Standards:
- IEC 60947-5-1
- Flashing Frequency:
- 1 Hz
- Protective Treatment:
- TC
- Cad Overall Width:
- 70 mm
- Sustainable Offer Status:
- Green Premium product
- Material:
- glass reinforced polyamide: base unit || polycarbonate: illuminated unit
- Terminals Description Iso N°1:
- (COM-1)PW || (GND)GROUND
- Connections - Terminals:
- screw clamp terminals, <= 1 x 1.5 mm² with cable end
- [Uimp] Rated Impulse Withstand Voltage:
- 4 kV IEC 60947-1
- Cad Overall Height:
- 139 mm
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- [Us] Rated Supply Voltage:
- 48...230 V AC
- Circularity Profile:
- N/A
- Nominal Voltage Limit:
- 0.85...1.1 Un IEC 60947-5-1
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Cad Overall Depth:
- 70 mm
- Beacon Or Indicator Bank Unit Type:
- base unit direct or tube fixing || illuminated unit
- Bulb Type:
- incandescent BA 15d || protected LED
- Nema Degree Of Protection:
- Type 4X UL indoor)
- Pollution Degree:
- 2
