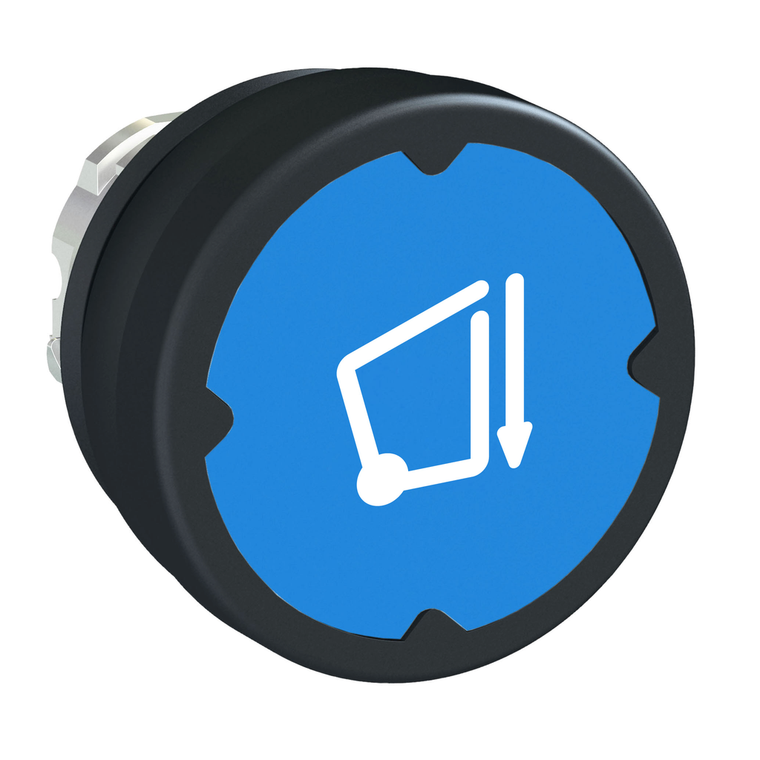

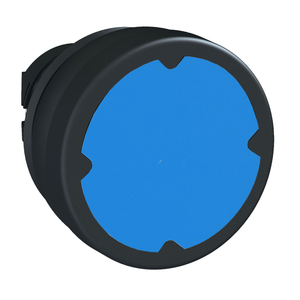

Schneider Electric ZB4BC68006 Pushbutton For Harsh Enviroment, Dark Bl
Schneider Electric
$36.60
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ZB4BC68006 Pushbutton For Harsh Enviroment, Dark Bl
Head for push button, Harmony XB4, pushbutton harsh environment, dark blue, with marking
- Group Of Product:
- flush marked type H006
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
- Product Or Component Type:
- head for push-button
- China Rohs Regulation:
- X
- Ambient Air Temperature For Operation:
- -40-70 °C
- Resistance To High Pressure Washer:
- 90 Pa 82.5 °C
- Operator Additional Information:
- vertical mounting
- Colour Of Marking:
- white
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information:
- Yes
- Range Of Product:
- Harmony XB4
- Sale Per Indivisible Quantity:
- 1
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Marking:
- type H006
- Type Of Operator:
- spring return
- Bezel Material:
- chromium plated metal
- Shape Of Signaling Unit Head:
- round
- Operator Profile:
- blue flush, type H006 white)
- Cad Overall Height:
- 18.5 mm
- Mounting Diameter:
- 22 mm
- Cad Overall Width:
- 37 mm
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP69K || IP67 || IP69
- Cad Overall Depth:
- 37 mm
- Cap/Operator Or Lens Colour:
- blue
- Main Group:
- harsh environment
- Product Certifications:
- UL || CE || CSA
- Net Weight:
- 0.036 kg
- Standards:
- CSA C22.2 || IEC 60947-5-1 || IEC 60947-1 || UL 508
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Ik Degree Of Protection:
- IK06 IEC 62262
- Environmental Disclosure:
- ENVPEP1808008EN
- Sustainable Offer Status:
- Green Premium product
- Head Type:
- standard
- Device Short Name:
- ZB4
- Warranty:
- 18 months
- Nema Degree Of Protection:
- NEMA 4 UL 508 || NEMA 13 || NEMA 12
- Electrical Composition Code:
- C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Mechanical Durability:
- 10000000 cycles
- Toxic Heavy Metal Free:
- Yes
- Reach Free Of Svhc:
- Yes
- Ambient Air Temperature For Storage:
- -40-85 °C
- Circularity Profile:
- ENVEOLI1808008EN
- Mercury Free:
- Yes
- Electrical Shock Protection Class:
- class I IEC 61140
- Datasheet:
- View
